Tanklueftingventil/stoerluftventil for BMW 3 Series E36 320i (1991)

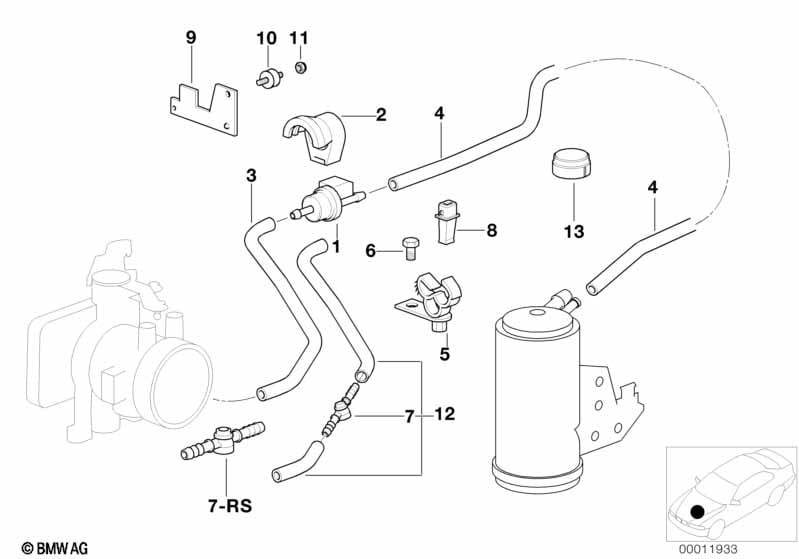

This Tanklueftingventil/stoerluftventil technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tanklueftingventil | AB-ELEKTRONIK | 1 | 13901726705 | $82.88 | Shop at ECS Tuning | ||||
| 02 | Hållare luftningsventil | 1 | 13901734443 | $3.75 | Shop at ECS Tuning | |||||
| 03 | Bränsleslang | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 04 | Bränsleslang | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 05 | Hållare braensleledning | 1 | 13311714455 | $2.27 | Shop at ECS Tuning | |||||
| 06 | Sexkantskruv | M8X12 | 1 | 10/1995 | 07119913616 | $0.25 | Avslutad | Shop at ECS Tuning | ||
| För fordon med Landutförande Tyskland och utan katalysator |
L801A=Ja S199A=Nej |
|||||||||
| 07 | Sats stoerluftventil | D=2,3MM/BOSCH | 1 | 12/1993 | 11641740204 | SI 001794822, SI 110993710 | Shop at ECS Tuning | |||
| KAN EFTERMONTERAS | ||||||||||
| 07 | Sats stoerluftventil | D=1,9MM/MS40 | 1 | 12/1993 | 11641740205 | Avslutad, SI 110993710 | Shop at ECS Tuning | |||
| KAN EFTERMONTERAS | ||||||||||
| För fordon med utan katalysator |
S199A=Ja |
|||||||||
| 08 | Motstand | 1000OHM/BOSCH | 1 | 07/1997 | 13901734469 | $6.33 | Shop at ECS Tuning | |||
Notering
- Avslutad = delen tillverkas inte längre.
- SI = Service Information
