Tanklueftingventil/stoerluftventil for BMW 3 Series E36 M3 (1996)

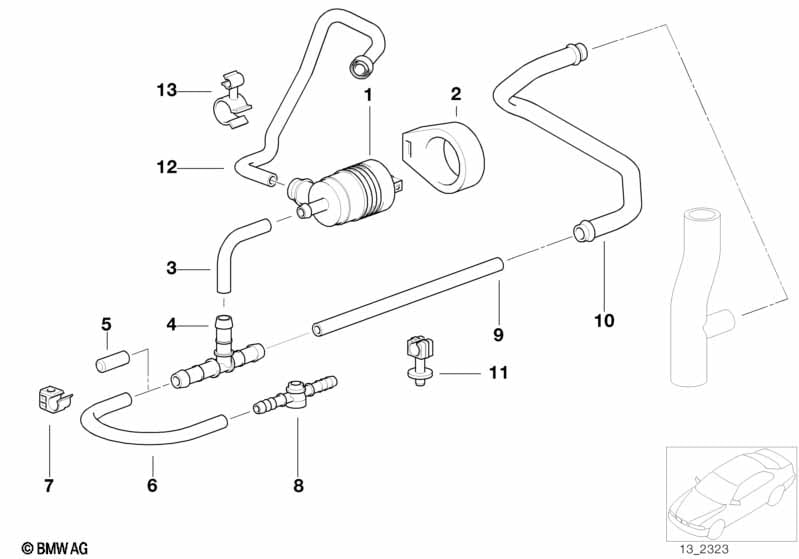

This Tanklueftingventil/stoerluftventil technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tanklueftingventil | 1 | 13901744150 | $82.88 | Shop at ECS Tuning | |||||
| 02 | Hållare luftningsventil | 1 | 13901740461 | $3.75 | Shop at ECS Tuning | |||||
| 03 | Slangkrök | 1 | 13901405762 | Avslutad | Shop at ECS Tuning | |||||
| 04 | Foerdelarstycke | 1 | 13531427071 | $2.00 | Shop at ECS Tuning | |||||
| 05 | Kåpa | D=7,0MM | 1 | 11611727176 | $3.39 | Shop at ECS Tuning | ||||
| 09 | Bränsleslang | 8X13MMX1000 | 1 | 03/2001 | 13537563456 | $44.77 | Shop at ECS Tuning | |||
| 10 | Ledning | 1 | 13901405763 | $7.50 | Shop at ECS Tuning | |||||

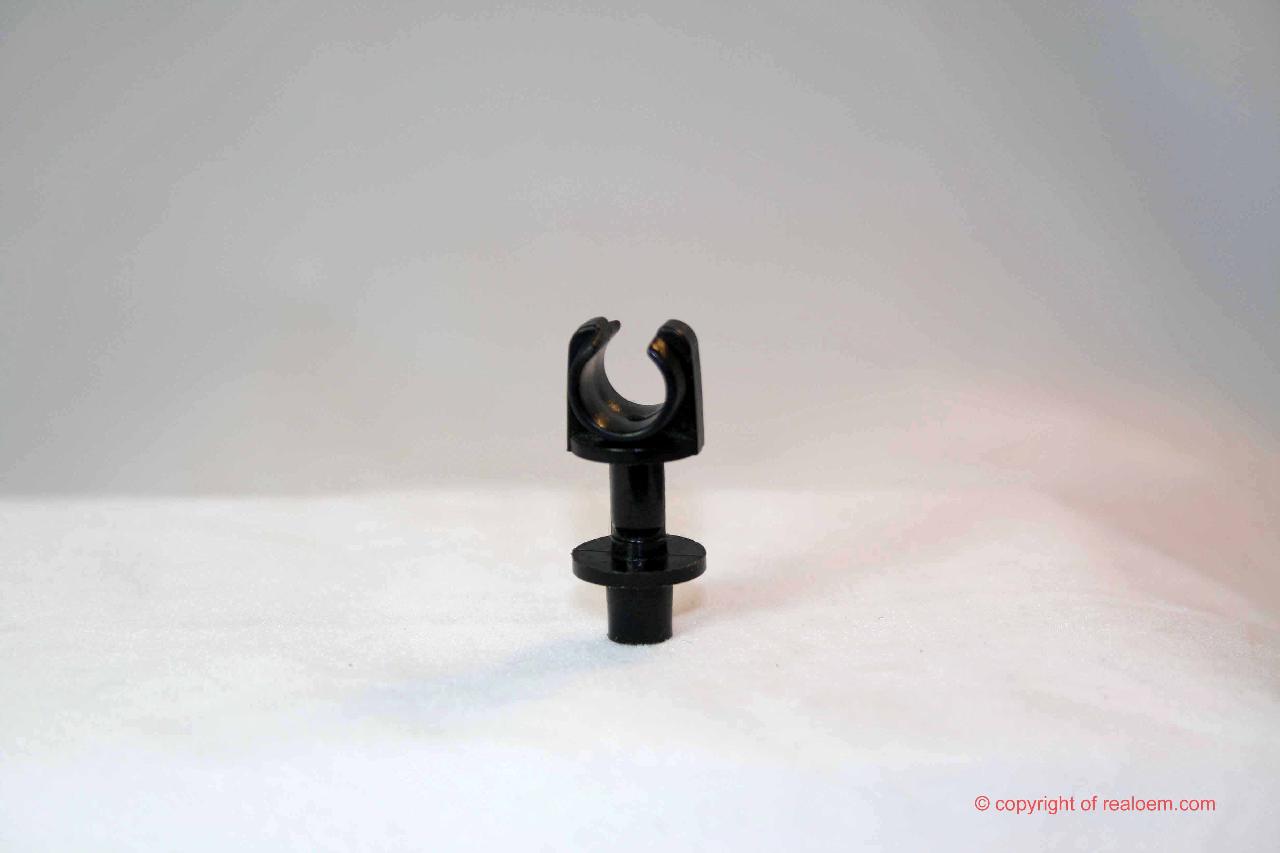

| 11 | Hållare | 1 | 61661368598 | $2.18 | Shop at ECS Tuning | |||||
| 12 | Slangkrök | 1 | 13901405759 | Avslutad, +stomme | Shop at ECS Tuning | |||||
| 13 | Slangfaeste | 1 | 13311278232 | $1.73 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
