Luftmassameter for BMW 3 Series E36 M3 (1996)

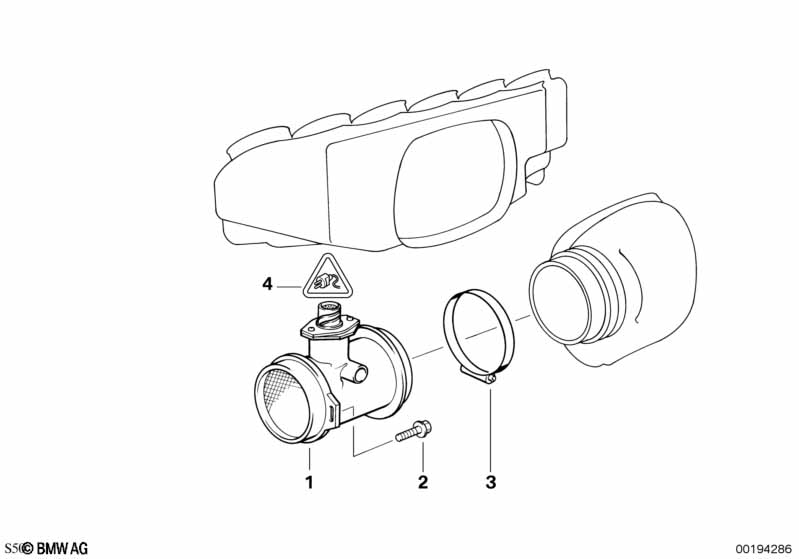

This Luftmassameter technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Värmefilmsluftmassemätare | 4-POL | 1 | 13621403123 | $402.32 | Avslutad | Shop at ECS Tuning | |||
| 02 | Skruv | K50X22 | 2 | 13711715678 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Slangklaemma | L89-96 | 1 | 07129952135 | $2.18 | Shop at ECS Tuning | ||||
| 04 | Kontakthus | 4-POL | 1 | 61131392224 | $7.43 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Rund instickshylsa 2.5 ELA med kabel | 1,0-2,5 MM² | 1 | 61130007571 | $2.65 | Shop at ECS Tuning | ||||
| -- | Skyddskaapa | 4-POL | 1 | 12521713508 | $2.30 | Avslutad | Shop at ECS Tuning | |||
Notering
- Avslutad = delen tillverkas inte längre.
