Ställmotor gasspjäll ASC+T for BMW 3 Series E36 318i

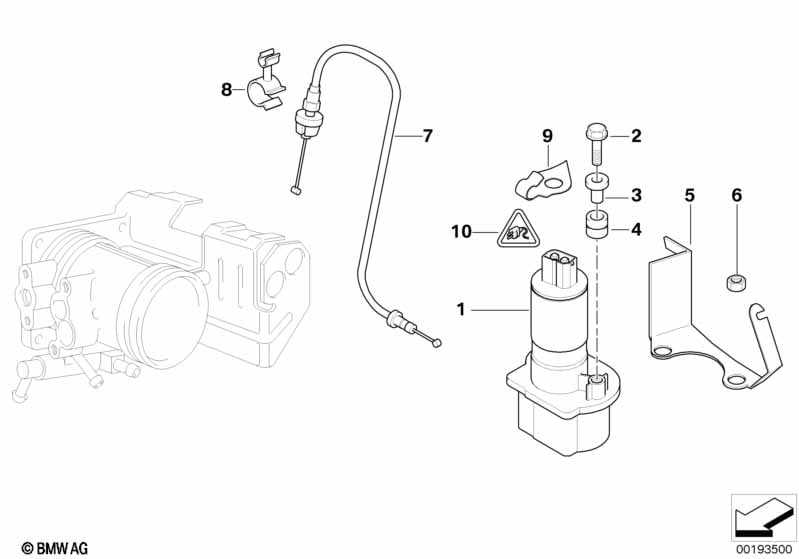

This Ställmotor gasspjäll ASC+T technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ställmotor gasspjäll Ads 2 | 1 | 35411163163 | $419.10 | Shop at ECS Tuning | |||||
| 02 | Sexkantskruv med bricka | M6X25 | 2 | 07119914107 | Shop at ECS Tuning | |||||
| 03 | Hylsa | ASC+T | 2 | 35411160589 | $1.40 | Shop at ECS Tuning | ||||
| 04 | Gummihylsa | 2 | 35411160590 | $1.23 | Shop at ECS Tuning | |||||
| 05 | Hållare ställmotor gasspjäll | 1 | 35401164436 | $3.17 | Shop at ECS Tuning | |||||
| 06 | Plastmutter grovgängtapp | M6 | 1 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 07 | Bowdenkabel Ads 2 | L=530MM/PBX | 1 | 35411164435 | $13.88 | Shop at ECS Tuning | ||||
| 08 | Slangfaeste | 1 | 11721287721 | $1.17 | Shop at ECS Tuning | |||||
| 10 | Kåpa FOER STICKKONTAKT SVART | SCHWARZ | 2 | 61131378400 | $1.40 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Rund instickshylsa 2.5, vattentät | 0,5-1,0 MM² | 1 | 61130007441 | $5.53 | Avslutad | Shop at ECS Tuning | |||
Notering
- Avslutad = delen tillverkas inte längre.
