Braensletank/monteringsdetaljer for BMW 1502-2002tii 2002 (1974)

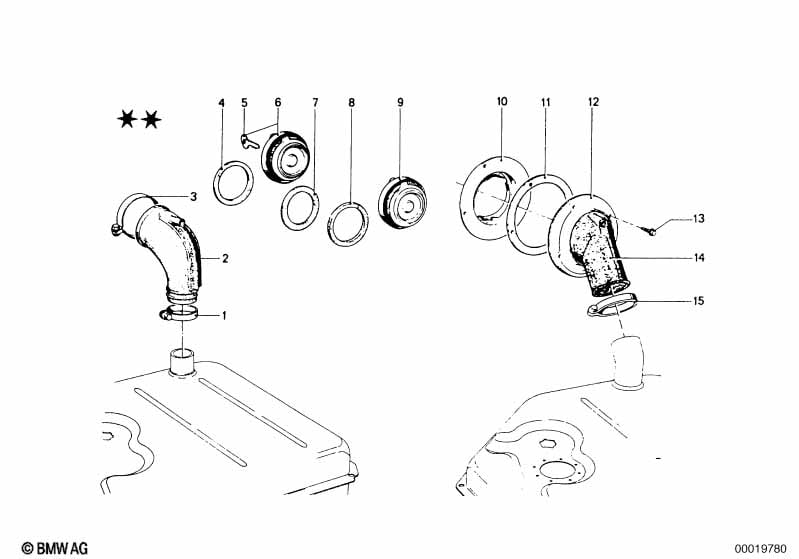

This Braensletank/monteringsdetaljer technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Slangklaemma | B90 | 1 | 07129952590 | Avslutad | Shop at ECS Tuning | ||||
| 06 | Tanklocket | ABSCHLIESSBAR | 1 | 16111103603 | $40.02 | Shop at ECS Tuning | ||||
| 09 | Tanklocket | 1 | 16111105835 | $22.30 | Shop at ECS Tuning | |||||
| 10 | Flaens | 1 | 16111106093 | $24.95 | Shop at ECS Tuning | |||||
| 11 | Packning | 1 | 16111106705 | $4.26 | Shop at ECS Tuning | |||||
| 12 | Slangklaemma | 1 | 16111106095 | Avslutad | Shop at ECS Tuning | |||||
| 13 | Plaatskruv | 4 | 16111111170 | $0.33 | Avslutad | Shop at ECS Tuning | ||||
| 14 | Paafyllningsroer | 1 | 16111105714 | $83.94 | Shop at ECS Tuning | |||||
| 15 | Slangklaemma | B60 | 1 | 07129952560 | Avslutad | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
