Bränsleledning/Dieselpump for BMW 3 Series E46 318d (2003)

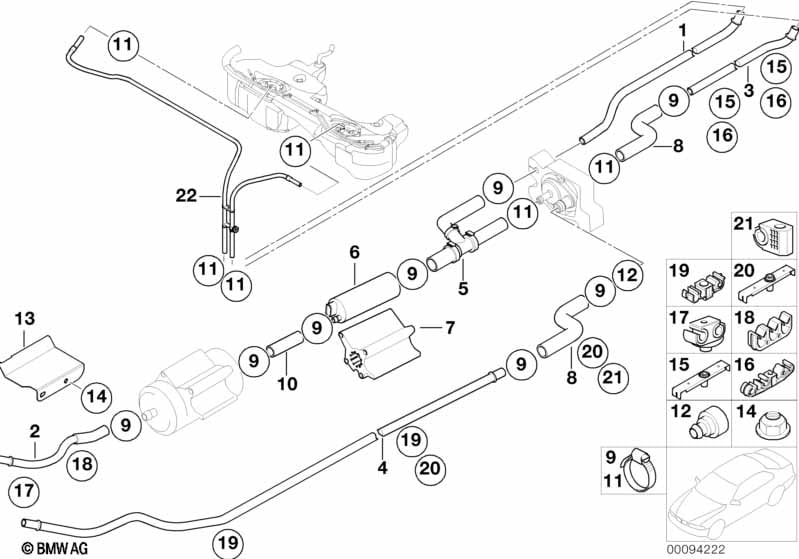

This Bränsleledning/Dieselpump technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bränsletilloppsledning bak | 1 | 09/2001 | 16126755986 | Shop at ECS Tuning | |||||
| 02 | Bränsletilloppsledning bak | 1 | 09/2001 | 16127175994 | Shop at ECS Tuning | |||||
| 03 | Bränslereturledning bak | 1 | 09/2001 | 16126755977 | Shop at ECS Tuning | |||||
| 04 | Bränslereturledning kort fram | 1 | 09/2001 | 16126755979 | Shop at ECS Tuning | |||||
| 05 | Foerdelarstycke | 1 | 09/2001 | 16127176013 | Shop at ECS Tuning | |||||
| 06 | Dieselpump | E3L | 1 | 09/2001 | 16117165590 | $297.84 | Shop at ECS Tuning | |||
| För fordon med Rapsmethylester-förmåga (RME) |
S201A=Ja |
|||||||||
| 06 | Dieselpump | E3L | 1 | 09/2001 | 16117165590 | $297.84 | Shop at ECS Tuning | |||
| 07 | Daempningsring | 2 | 09/2001 | 16117161986 | Avslutad | Shop at ECS Tuning | ||||
| 08 | Formslang | 2 | 09/2001 | 16127175900 | $21.20 | +stomme | Shop at ECS Tuning | |||
| 09 | Slangklaemma | 12,8-15,3 | X | 09/2001 | 16121180240 | $0.77 | Shop at ECS Tuning | |||
| 10 | Bränsleslang | 8X13MMX1000 | X | 09/2001 | 13537563456 | $44.77 | Shop at ECS Tuning | |||
| Rapsmethylester-förmåga (RME) | ||||||||||
| 11 | Slangklaemma | L12-15 | X | 09/2001 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 12 | Snabbkoppling | 1 | 09/2001 | 16126756302 | Shop at ECS Tuning | |||||
| 13 | Skyddsblek | 1 | 09/2001 | 16121183775 | Shop at ECS Tuning | |||||
| 14 | Plastmutter med bricka | D=18MM | 2 | 09/2001 | 08/2006 | 51161943122 | $0.39 | Shop at ECS Tuning | ||
| 14 | Plastmutter grovgängtapp | M6 | 2 | 09/2001 | 07147336362 | Shop at ECS Tuning | ||||
| 15 | Faestplaat | 2 | 09/2001 | 16127195327 | $2.12 | Shop at ECS Tuning | ||||
| 16 | Rörledningsclip | 2 | 09/2001 | 16121183772 | $1.43 | Shop at ECS Tuning | ||||
| 17 | Rörledningsclip | 1 | 09/2001 | 16121179396 | $1.08 | Avslutad | Shop at ECS Tuning | |||
| 18 | Distanshaallare | 3XD8 | 1 | 09/2001 | 16126752153 | $2.97 | Shop at ECS Tuning | |||
| 19 | Hållare bromsledningar | 3 | 09/2001 | 34301164005 | $0.68 | Shop at ECS Tuning | ||||
| 20 | Faestplaat | 2 | 09/2001 | 34306773697 | $0.62 | Shop at ECS Tuning | ||||
| 21 | Rörledningsclip | 1 | 09/2001 | 16136753249 | $0.93 | Shop at ECS Tuning | ||||
| 22 | Sats braensleledningar | 1 | 16116773620 | Shop at ECS Tuning | ||||||
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
