Kylsystems-kylvätskeslangar for BMW 5 Series F10 528i (2010)

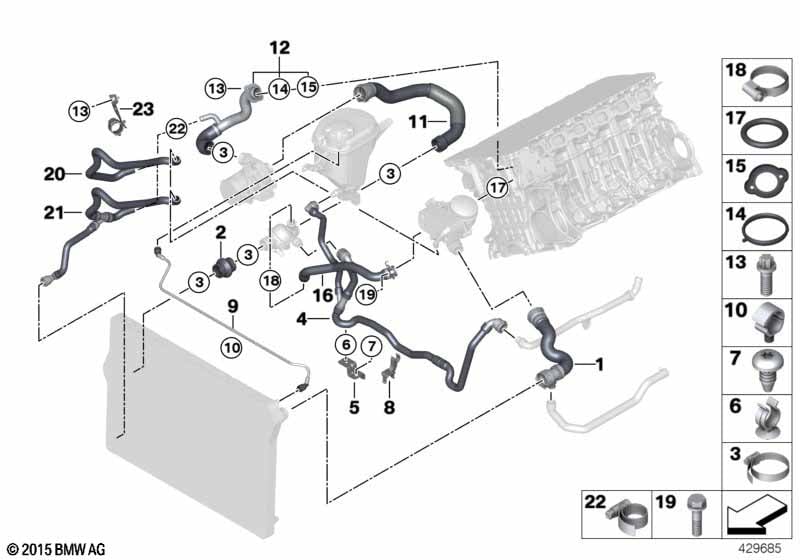

This Kylsystems-kylvätskeslangar technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | För fordon med Automatväxel och Sport automatisk växellåda och Parkeringsvärme |
S205A=Nej S2TBA=Nej S536A=Nej |
||||||||
| 01 | Kylarmedelledning | 1 | 17127578399 | Shop at ECS Tuning | ||||||
| 02 | Kylvätskeslang utan slangklämmor | 1 | 17127610704 | Shop at ECS Tuning | ||||||
| 03 | Slangklaemma | L42-48 | 2 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 04 | Kylarmedelledning | 1 | 17127578404 | Shop at ECS Tuning | ||||||
| 05 | Hållare kylarmedelledning | 2 | 17127585276 | Shop at ECS Tuning | ||||||
| 06 | Slangfaeste | 2 | 07147506219 | $0.91 | Shop at ECS Tuning | |||||
| 07 | Torxskruv självgängande | M6X13-ZNNIVSI | 2 | 31146786689 | Shop at ECS Tuning | |||||
| 08 | Hållare kylarmedelledning | 1 | 17127583106 | Shop at ECS Tuning | ||||||
| 09 | Ventilationsledning | 1 | 17127578405 | Shop at ECS Tuning | ||||||
| 10 | Fästklammer | 2 | 17127611355 | Shop at ECS Tuning | ||||||
| 11 | Slang termostat-kylvätskepump | 1 | 11537581942 | +stomme | Shop at ECS Tuning | |||||
| 12 | Ledning motortillopp-kylvätskepump | 1 | 11537581873 | +stomme | Shop at ECS Tuning | |||||
| 13 | Torxskruv | M6X16-ZNNIV SI | 2 | 07129902813 | $0.25 | Shop at ECS Tuning | ||||
| 14 | O-ring | 1 | 11517514942 | $4.25 | Shop at ECS Tuning | |||||
| 15 | Packning | 1 | 11537534880 | $12.02 | Shop at ECS Tuning | |||||
| 16 | Slang cylindertopp-termostat | 1 | 11537581063 | +stomme | Shop at ECS Tuning | |||||
| 17 | O-ring | 29X2,9 | 1 | 11537545278 | $6.08 | Shop at ECS Tuning | ||||
| 18 | Slangklaemma | L23-35 | 1 | 11537547945 | $2.39 | Shop at ECS Tuning | ||||
| 19 | Sexkantskruv med bricka | M6X23 | 2 | 07119905591 | $0.29 | Shop at ECS Tuning | ||||
| Används på samma sätt som gamla delen | ||||||||||
| 20 | Slang värmeväxlare motorolja | 1 | 05/2010 | 11537581872 | +stomme | Shop at ECS Tuning | ||||
| 22 | Slangklaemma | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 23 | Distanshaallare | 1 | 11537583702 | Shop at ECS Tuning | ||||||
Notering
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
