Avgasupphangningsdelar for BMW 7 Series E23 735i (1989)

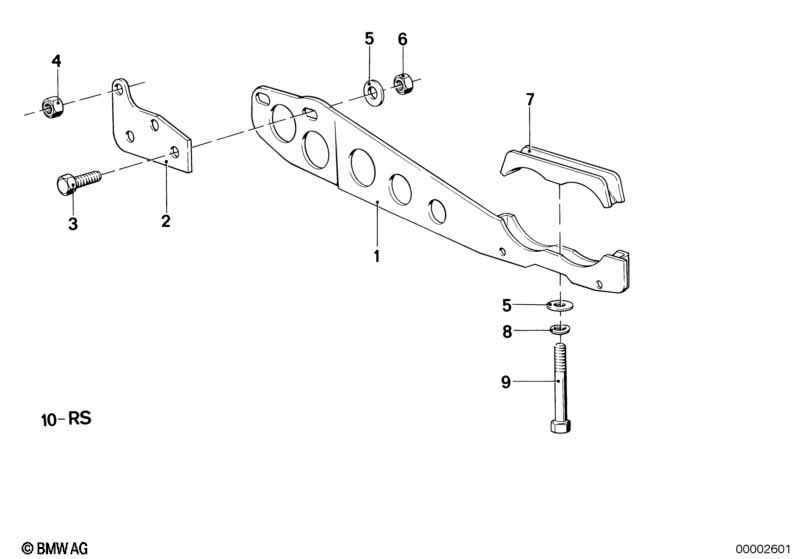

This Avgasupphangningsdelar technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Faeste avgasroer | 1 | 10/1980 | 18113909749 | Shop at ECS Tuning | |||||
| 01 | Faeste avgasroer | 1 | 10/1980 | 18211175020 | $8.20 | Shop at ECS Tuning | ||||
| 02 | Faestplaat | 1 | 10/1980 | 18211246075 | $1.91 | Shop at ECS Tuning | ||||
| 03 | Sexkantskruv | M8X22-8.8-ZNS3 | 2 | 10/1980 | 07119904040 | Shop at ECS Tuning | ||||
| 03 | Sexkantskruv | M8X18-8.8-ZNS3 | 2 | 10/1980 | 07119904146 | $0.65 | Shop at ECS Tuning | |||
| 05 | Underlagsplaata | A8,4 | 3 | 10/1980 | 33311108205 | $0.16 | Shop at ECS Tuning | |||
| 06 | Sexkantmutter självlasning | M8-8-ZNNI SI | 2 | 10/1980 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 07 | Roerklaemma | 1 | 03/1983 | 18211176717 | $11.57 | Shop at ECS Tuning | ||||
| 07 | Roerklaemma | 1 | 03/1983 | 18213909752 | Shop at ECS Tuning | |||||
| 08 | Fjäderbricka | 8,4X15-ZNS3 | 1 | 10/1980 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 09 | Sexkantsskruv | M8X65 | 1 | 10/1980 | 02/2000 | 07119903018 | Shop at ECS Tuning | |||
| 09 | Sexkantskruv | M8X65 | 1 | 10/1980 | 41117006311 | $6.28 | Shop at ECS Tuning | |||
| 10 | Sats monteringsdetaljer | 1 | 10/1980 | 18211175442 | Avslutad | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
