Huvudcylinder for BMW 2500-3.3Li 2800 (1971)

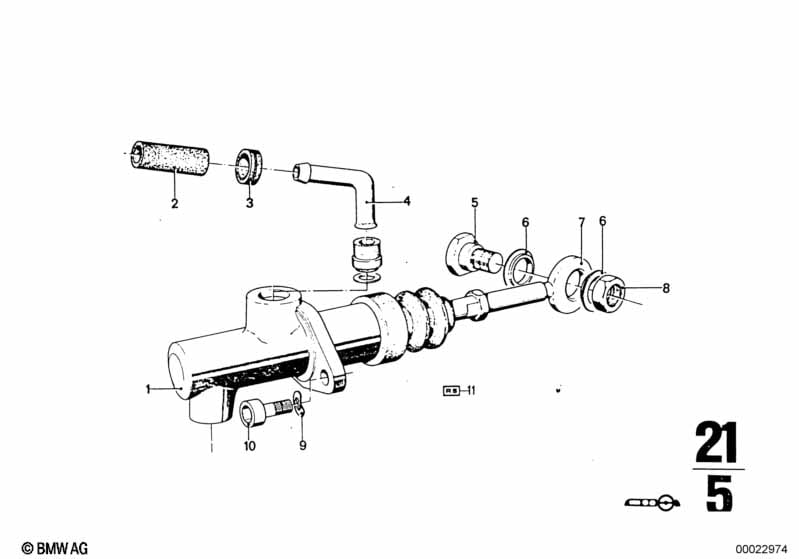

This Huvudcylinder technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Huvudcylinder koppling | D=19,05MM | 1 | 10/1973 | 21521103851 | $808.67 | Avslutad | Shop at ECS Tuning | ||
| 02 | Slang | 7.5X13.5 | 1 | 35006857512 | Shop at ECS Tuning | |||||
| 04 | Kopplingsstycke | 1 | 07/1969 | 02/1977 | 34321102282 | $4.16 | Shop at ECS Tuning | |||
| 05 | Ställskruv | 1 | 21521102721 | $3.62 | Shop at ECS Tuning | |||||
| 06 | Lagerbussning | 2 | 35314640116 | $1.20 | Shop at ECS Tuning | |||||
| 07 | Kolvstang | 1 | 21521103310 | $36.92 | Shop at ECS Tuning | |||||
| 08 | Sexkantmutter självlasning | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Fjäderbricka | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Sexkantskruv | M8X22-8.8-ZNS3 | 2 | 07119904040 | Shop at ECS Tuning | |||||
| 10 | Skruv ctt | M8X20-8.8 ZN | 2 | 07119919969 | $0.78 | Shop at ECS Tuning | ||||
| 11 | Reparationsats kopplingens huvudcyl. | ATE | 1 | 21521102625 | $36.39 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
