Getrag 265/5 drevsats detaljer/lager for BMW 5 Series E12 525 (1976)

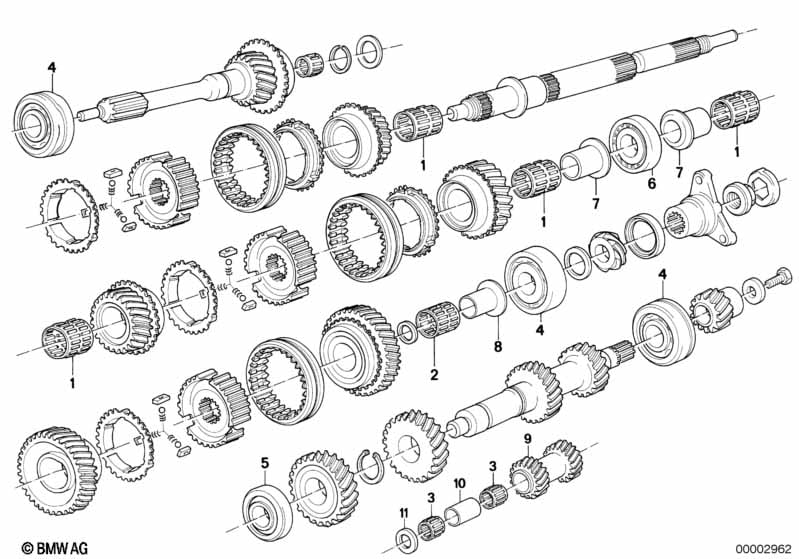

This Getrag 265/5 drevsats detaljer/lager technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | naallager | 4 | 23221228279 | $43.20 | Shop at ECS Tuning | |||||
| 02 | naallager | 42X37X27,5 | 1 | 23221204605 | Shop at ECS Tuning | |||||
| 03 | naallager | 20X28X25 | 2 | 23211205212 | $15.80 | Shop at ECS Tuning | ||||
| 04 | Kullager | 72X30X19 | 3 | 23121205197 | Shop at ECS Tuning | |||||
| 05 | Lager | 25X62X17 | 1 | 07119981432 | $26.75 | Shop at ECS Tuning | ||||
| 06 | naallager | 62X34X22 | 1 | 23231205191 | $213.88 | Shop at ECS Tuning | ||||
| 07 | Distansbussning | 2 | 23237506207 | Avslutad | Shop at ECS Tuning | |||||
| 08 | Distansbussning | 1 | 23221205085 | $76.92 | Avslutad | Shop at ECS Tuning | ||||
| 09 | Dubbelhjul | Z=16 | 1 | 23211205207 | $530.70 | Shop at ECS Tuning | ||||
| 10 | Bussning | 1 | 23211205211 | Shop at ECS Tuning | ||||||
| 11 | Tryckbricka | 5,000MM | X | 23211205210 | $10.60 | Avslutad | Shop at ECS Tuning | |||
| 11 | Tryckbricka | 5,100MM | X | 23211206162 | Avslutad | Shop at ECS Tuning | ||||
| 11 | Tryckbricka | 5,300MM | X | 23211206230 | Avslutad | Shop at ECS Tuning | ||||
| 11 | Tryckbricka | 5,200MM | X | 23211206349 | Avslutad | Shop at ECS Tuning | ||||
| 11 | Tryckbricka | 5,400MM | X | 23211206389 | Avslutad | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
