Växellåda monteringsdetaljer SMG for BMW 3 Series E36 M3

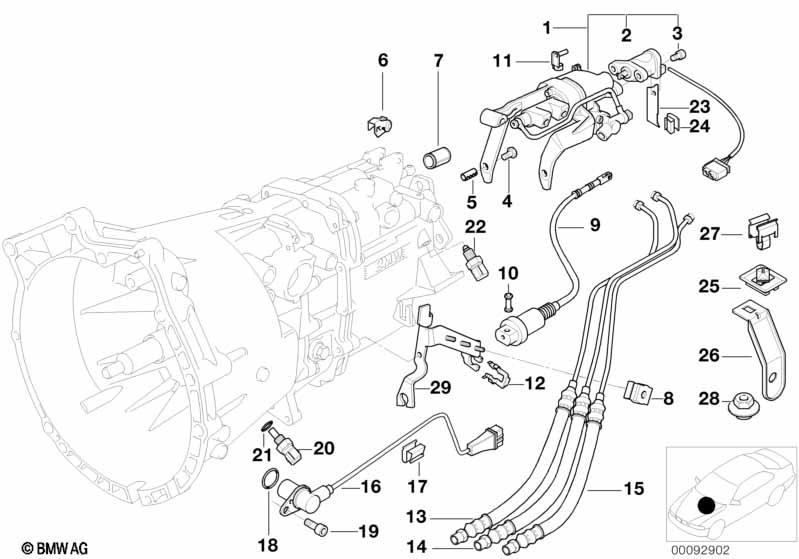

This Växellåda monteringsdetaljer SMG technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | För fordon med Sekventiell M-växellåda Drivelogic |
S793A=Ja |
||||||||
| 01 | Inställningsdetalj | 1 | 04/1998 | 23412228313 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Hållare insticksanslutning svart | 1 | 04/1998 | 61131378908 | $0.87 | Shop at ECS Tuning | ||||
| -- | Hållare växelidentifikation | 1 | 04/1998 | 61132228984 | Shop at ECS Tuning | |||||
| -- | Ledning hållare | 1 | 04/1998 | 12521407556 | Shop at ECS Tuning | |||||
| -- | Kabelklaemma | 1 | 04/1998 | 12527575212 | $0.78 | Shop at ECS Tuning | ||||
| -- | Adapter ledning | 1 | 04/1998 | 12511407586 | Shop at ECS Tuning | |||||
| 01 | Inställningsdetalj | 1 | 04/1998 | 23412228313 | Avslutad | Shop at ECS Tuning | ||||
| 02 | Kontakt vaexelidentifikation | 1 | 04/1998 | 23412229008 | $396.67 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Hållare insticksanslutning svart | 1 | 04/1998 | 61131378908 | $0.87 | Shop at ECS Tuning | ||||
| -- | Hållare växelidentifikation | 1 | 04/1998 | 61132228984 | Shop at ECS Tuning | |||||
| -- | Ledning hållare | 1 | 04/1998 | 12521407556 | Shop at ECS Tuning | |||||
| -- | Kabelklaemma | 1 | 04/1998 | 12527575212 | $0.78 | Shop at ECS Tuning | ||||
| -- | Adapter ledning | 1 | 04/1998 | 12511407586 | Shop at ECS Tuning | |||||
| 02 | Kontakt vaexelidentifikation | 1 | 04/1998 | 23412229008 | $396.67 | Shop at ECS Tuning | ||||
| 03 | Skruv ctt | M5X25-8.8-ZNS | 2 | 07119919959 | $0.60 | Shop at ECS Tuning | ||||
| 04 | Sexkantskruv | M6X25 | 2 | 07119913483 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Passhylsa | 2 | 23412228472 | Shop at ECS Tuning | ||||||
| 06 | Lagerbult | 1 | 10/2003 | 25117529079 | $5.23 | Shop at ECS Tuning | ||||
| 06 | Lagerbult | 1 | 25117529079 | $5.23 | Shop at ECS Tuning | |||||
| 07 | Sats växelspakled | 1 | 23412228637 | Avslutad | Shop at ECS Tuning | |||||
| 08 | Rörledningsclip | 3 | 16121176767 | $0.77 | Shop at ECS Tuning | |||||
| 09 | Bowdenkabel | 1 | 23412228317 | Shop at ECS Tuning | ||||||
| 10 | Sats klaemdelar | 1 | 23412228638 | Shop at ECS Tuning | ||||||
| 11 | Bowdenkabellaasning | 1 | 25161422276 | $2.02 | Shop at ECS Tuning | |||||
| 12 | Låsbleck | 2 | 25161421252 | $0.75 | Shop at ECS Tuning | |||||
| 13 | Slangledning växelväg 1 | 1 | 23132228318 | +stomme | Shop at ECS Tuning | |||||
| 14 | Slangledning växelväg 2 | 1 | 23132228319 | +stomme | Shop at ECS Tuning | |||||
| 15 | Slangledning väljarvinkel | 1 | 23132228320 | +stomme | Shop at ECS Tuning | |||||
| 16 | Impulsgivare vevaxel | 1 | 12142282341 | +stomme | Shop at ECS Tuning | |||||
| 17 | Stötklämma | A=3,5 - 6,0MM | 1 | 07147547239 | $0.58 | Shop at ECS Tuning | ||||
| 18 | O-ring | 17X3 | 1 | 12141748398 | $1.20 | Shop at ECS Tuning | ||||
| 19 | Skruv ctt | M6X16ZNNIV SI | 1 | 13627545338 | $0.47 | Shop at ECS Tuning | ||||
| 20 | Oljetemperaturkontakt | 1 | 12611404699 | $43.22 | Shop at ECS Tuning | |||||
| 21 | Packning | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 22 | Backljuskontakt | M12X1.5 | 1 | 23147524811 | $11.00 | Shop at ECS Tuning | ||||
| 23 | Hållare växelidentifikation | 1 | 61132228984 | Shop at ECS Tuning | ||||||
| 24 | Kabelklaemma | 1 | 12527575212 | $0.78 | Shop at ECS Tuning | |||||
| 25 | Hållare insticksanslutning svart | 1 | 61131378908 | $0.87 | Shop at ECS Tuning | |||||
| 26 | Ledning hållare | 1 | 04/1998 | 12521405537 | Avslutad | Shop at ECS Tuning | ||||
| 26 | Ledning hållare | 1 | 04/1998 | 12521407556 | Shop at ECS Tuning | |||||
| 27 | Haallare stickkontakt | 1 | 07149157161 | $1.31 | Shop at ECS Tuning | |||||
| 28 | Tryckknopp | 1 | 17111709419 | $0.33 | Shop at ECS Tuning | |||||
| 29 | Hållare slangledning | 1 | 23412228316 | $44.94 | Shop at ECS Tuning | |||||
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
