Getrag 235 hus+monteringsdetaljer for BMW 1502-2002tii 2002 (1974)

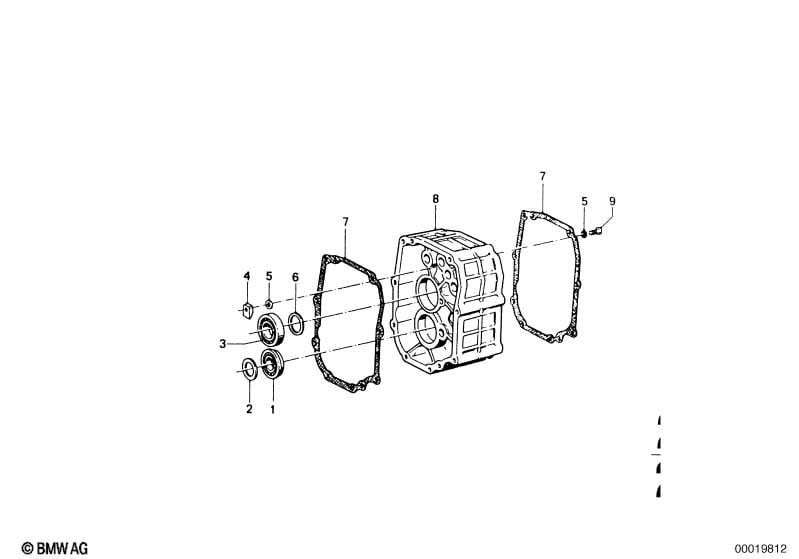

This Getrag 235 hus+monteringsdetaljer technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cyl.rullager | 52X25X15 | 1 | 23121200731 | $54.41 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Distansbussning | 1 | 23221205085 | $76.92 | Avslutad | Shop at ECS Tuning | ||||
| 02 | Distansbricka | 20X28X0,3 | X | 23121606151 | $0.42 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Distansbussning | 1 | 23221205085 | $76.92 | Avslutad | Shop at ECS Tuning | ||||
| 03 | Rullager | 62X30X16 | 1 | 23121207402 | $133.01 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Distansbussning | 1 | 23221205085 | $76.92 | Avslutad | Shop at ECS Tuning | ||||
| 04 | Haallsten | 2 | 23111200726 | $65.84 | Avslutad | Shop at ECS Tuning | ||||
| 05 | Distansbricka | 6X10X0,5 | X | 23121200727 | $9.71 | Avslutad | Shop at ECS Tuning | |||
| 05 | Distansbricka | 6X10X0,1 | X | 23121200728 | Avslutad | Shop at ECS Tuning | ||||
| 06 | Underlagsplaata | PS 30X42X0,3 | X | 23121630160 | Avslutad | Shop at ECS Tuning | ||||
| 07 | Packning asbestfri | 2 | 23121222356 | $9.25 | Shop at ECS Tuning | |||||
| 08 | Mellanhus | 1 | 23111200722 | Avslutad | Shop at ECS Tuning | |||||
| 09 | Skruv ctt | M6X12 | 2 | 07119920069 | $0.27 | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
