GS6X53DZ husdel och monter.detaljer for BMW 5 Series E61 LCI 535xi (2006)

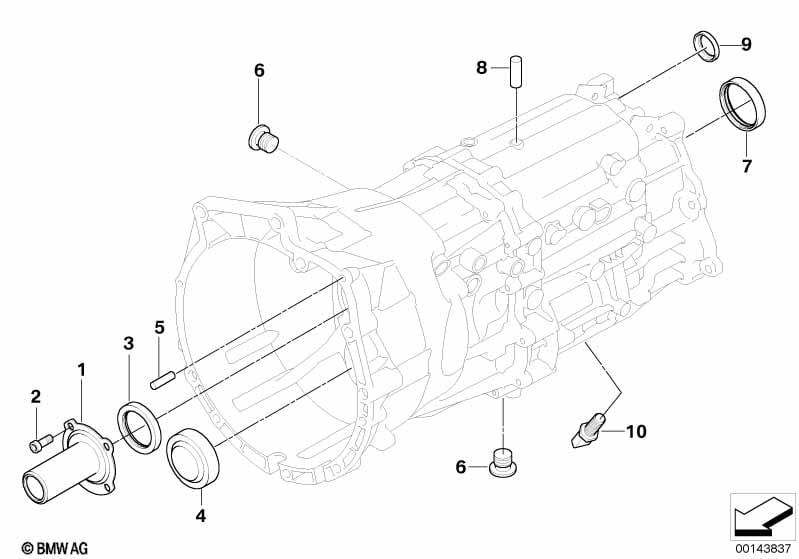

This GS6X53DZ husdel och monter.detaljer technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 535xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Styrhylsa | 1 | 23117537909 | $53.42 | Shop at ECS Tuning | |||||
| 02 | Torxskruv | M6X12 | 4 | 23117531355 | $1.80 | Shop at ECS Tuning | ||||
| 03 | Axeltätning | 70X39,85X9 | 1 | 23127501712 | $15.29 | Shop at ECS Tuning | ||||
| 04 | Sidolock | 1 | 23117537911 | $8.67 | Shop at ECS Tuning | |||||
| 06 | Taetn.skruvar med packning | M18X1,5 | 2 | 23117531356 | $7.44 | Shop at ECS Tuning | ||||
| 07 | Axeltätning | 62X50X9 | 1 | 23121282458 | $15.29 | Shop at ECS Tuning | ||||
| 08 | Ventilationsrör | 1 | 23117537913 | $6.53 | Shop at ECS Tuning | |||||
| 09 | Axeltätning | 15X21X5 | 1 | 23128677736 | Shop at ECS Tuning | |||||
| 10 | Backljuskontakt | M12X1.5 | 1 | 23147524811 | $11.00 | Shop at ECS Tuning |
