Manuell växellåda GS6-17BG for BMW 3 Series F30 316i (2015)

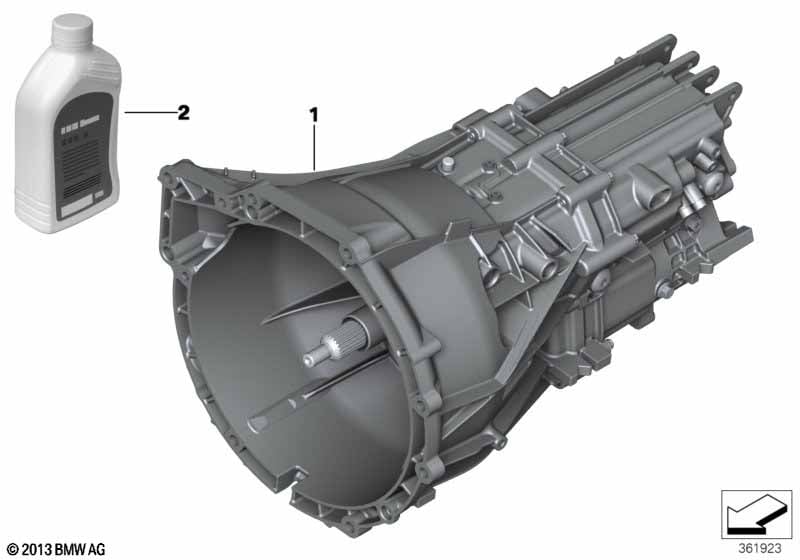

This Manuell växellåda GS6-17BG technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP REMAN 6-växlad växellåda | GS6-17BG - TAMY | 1 | 23007633986 | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | Torxskruv mikroinkapslad | M5X12-8.8 ZNS3 | 2 | 23147576178 | Shop at ECS Tuning | |||||
| -- | Neutralväxel-givare | 1 | 23147606188 | Shop at ECS Tuning | ||||||
| 02 | Vaexellaedsolja MTF LT-3 | 1L | X | 83222339221 | Shop at ECS Tuning | |||||
| Påfyllningsmängder, se under Tilläggsinformation |
||||||||||
