S6s420g hus+monteringsdetaljer for BMW 5 Series E39 540i (1995)

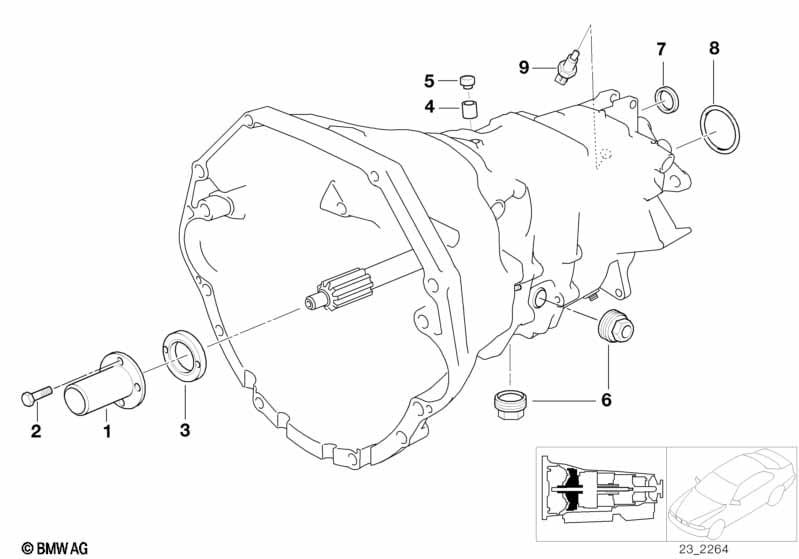

This S6s420g hus+monteringsdetaljer technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Styrhylsa | 1 | 23111222722 | $53.42 | Shop at ECS Tuning | |||||
| 02 | Sexkantskruv | M6X18 | 4 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 03 | Axeltätning | 35X52X7 | 1 | 23121228493 | Shop at ECS Tuning | |||||
| 04 | Hylsa | 1 | 23137545703 | $2.58 | Shop at ECS Tuning | |||||
| 05 | Ventilationskåpa | 1 | 08/2006 | 23137507652 | $1.82 | Shop at ECS Tuning | ||||
| 05 | Luftningsventil | 1 | 33107857501 | Shop at ECS Tuning | ||||||
| 06 | Tätn.skruvar | M24X1,5 | 2 | 23117527440 | $5.48 | Shop at ECS Tuning | ||||
| 07 | Axeltätning | 15X21X6,5 | 1 | 23127501582 | Shop at ECS Tuning | |||||
| 08 | Axeltätning | 52X68X8 | 1 | 23121222769 | $55.44 | Shop at ECS Tuning | ||||
| 09 | Backljuskontakt | M12X1.5 | 1 | 23147524811 | $11.00 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 540i S6s420g hus+monteringsdetaljer?
- This technical diagram illustrates the S6s420g hus+monteringsdetaljer within the Växellåda - mekanisk group for the 5 Series E39 540i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Styrhylsa (Part #23111222722).
- Which models use the hardware listed in this S6s420g hus+monteringsdetaljer?
- The hardware and components featured in the S6s420g hus+monteringsdetaljer are specific to the 5 Series E39 540i produced during 1995. These technical specifications ensure that parts like the Styrhylsa (23111222722) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the S6s420g hus+monteringsdetaljer assembly?
- Each item in the S6s420g hus+monteringsdetaljer corresponds to the numbered list below the illustration. For the 5 Series E39 540i, you can identify the Styrhylsa by locating its position on the schematic, which then links to the official BMW part number 23111222722 for the Växellåda - mekanisk section.
