ZF 3hp22 husdel/oljefoersoerjning for BMW 3 Series E21 323i (1982)

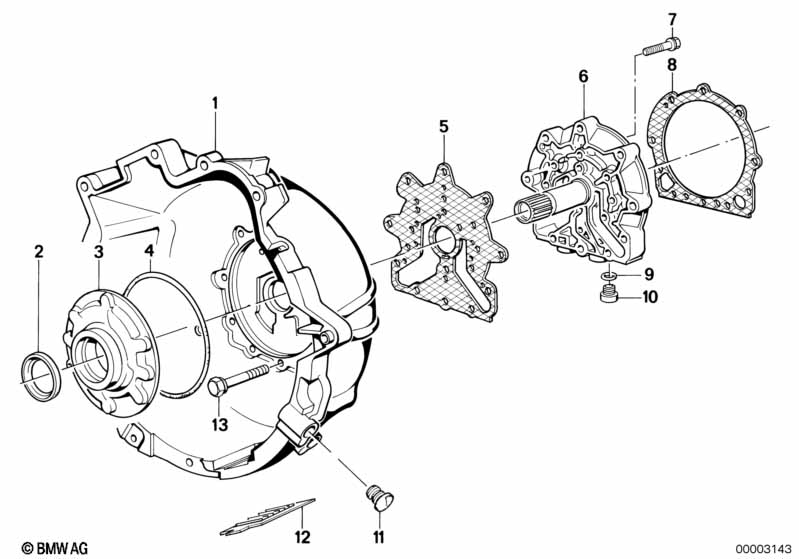

This ZF 3hp22 husdel/oljefoersoerjning technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transformatorklocka | 1 | 24411206600 | Avslutad | Shop at ECS Tuning | |||||
| 02 | Axeltätning | 40X52X7 | 1 | 24311422671 | $11.45 | Shop at ECS Tuning | ||||
| 03 | Oljepump | 1 | 24311207748 | $323.81 | Avslutad | Shop at ECS Tuning | ||||
| 04 | O-ring | 128X3 | 1 | 24201217321 | $9.32 | Shop at ECS Tuning | ||||
| 05 | Packning asbestfri | 1 | 24401215639 | $4.10 | Avslutad | Shop at ECS Tuning | ||||
| 06 | Mellanplatta | 1 | 24401215340 | $327.14 | Avslutad | Shop at ECS Tuning | ||||
| 07 | Sexkantskruv med bricka | M8X55-Z3 | X | 07119912601 | Avslutad | Shop at ECS Tuning | ||||
| 08 | Packning asbestfri | 1 | 09/1982 | 24111215638 | $4.78 | Avslutad | Shop at ECS Tuning | |||
| 09 | Packning | A10X13,5-CU | 2 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Tätn.skruvar | M10X1 | 2 | 24111207605 | $2.86 | Shop at ECS Tuning | ||||
| 12 | Skyddsgaller f tillaeggventilation | 1 | 24401206042 | $3.02 | Avslutad | Shop at ECS Tuning | ||||
| 13 | Sexkantskruv med bricka | M6X28-Z3 | 9 | 07119915183 | Avslutad | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
