A5S440Z drivning for BMW 7 Series E38 740i (1998)

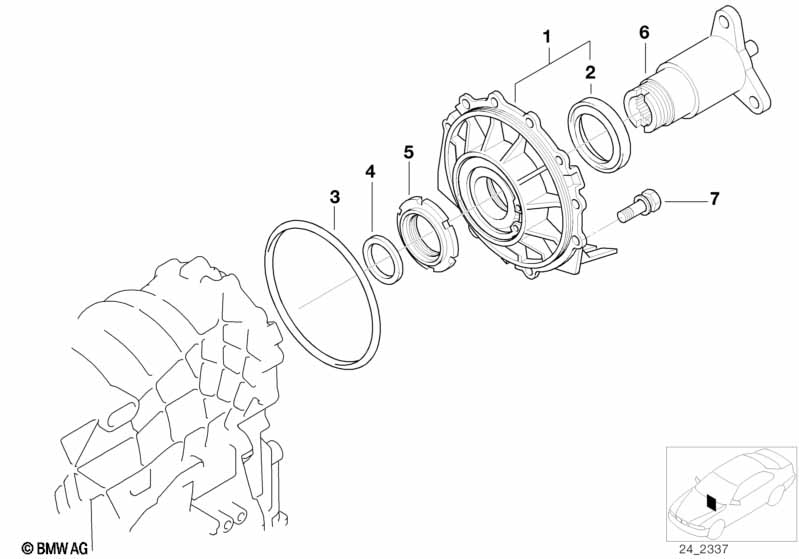

This A5S440Z drivning technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vaexellaadsfoerlaengning | 1 | 24131422666 | $218.79 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 01 | Reparationssats växellådsförlängning | 1 | 24135A7A651 | Shop at ECS Tuning | ||||||
| 02 | Axeltätning | 57X73X8 | 1 | 24131422667 | $20.23 | Shop at ECS Tuning | ||||
| 03 | O-ring | 1 | 24131421143 | $9.32 | Shop at ECS Tuning | |||||
| 04 | Sats justerplaata | 1 | 24231421555 | $44.70 | Shop at ECS Tuning | |||||
| 05 | Ringmutter | 1 | 24201421170 | $20.93 | Shop at ECS Tuning | |||||
| 06 | Avdriftflaens | 1 | 24201422521 | $420.36 | Avslutad | Shop at ECS Tuning | ||||
| 07 | Sexkantskruv | M8X25-Z3 | X | 24531421167 | $2.98 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
