Styrdon programmerad EGS for BMW 3 Series E36 320i (1991)

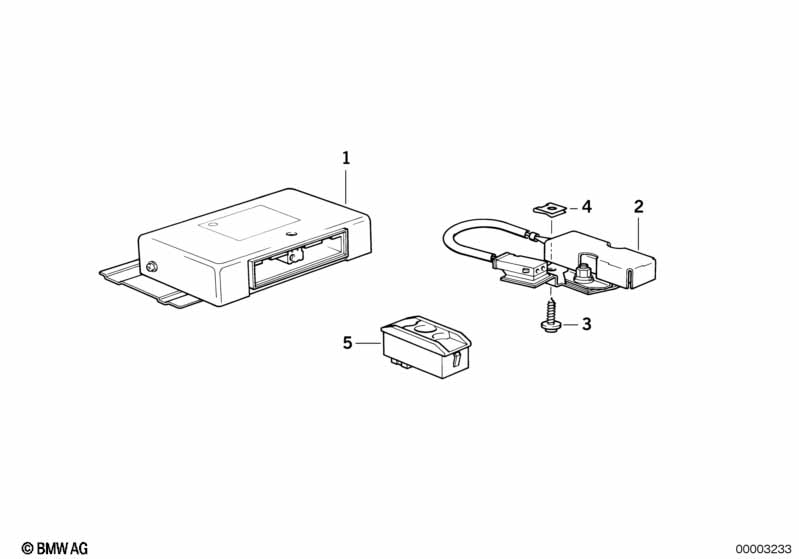

This Styrdon programmerad EGS technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | A5S 300J För fordon med Landutförande japan |
L807A=Ja |
||||||||
| 01 | Styrdon egs | CODE: GU | 1 | 05/1992 | 24601219618 | Avslutad | Shop at ECS Tuning | |||
| 02 | Motstaand | 1 | 24611219214 | Shop at ECS Tuning | ||||||
| 03 | Sexkantplaatskruv | ST4,8X16-C-Z1 | 2 | 07119916945 | $0.18 | Shop at ECS Tuning | ||||
| 03 | Sexkantplaatskruv | ST4,8X16-C-Z1 | 2 | 07119906265 | Avslutad | Shop at ECS Tuning | ||||
| 04 | Plaatmutter | ST4,8-5 | 2 | 07129901652 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Kontakt EH-vaexellaada | 1 | 61318353229 | $84.81 | Shop at ECS Tuning | |||||
Notering
- Avslutad = delen tillverkas inte längre.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 320i Styrdon programmerad EGS?
- This technical diagram illustrates the Styrdon programmerad EGS within the Växellåda - automatisk group for the 3 Series E36 320i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Styrdon egs (Part #24601219618).
- Which models use the hardware listed in this Styrdon programmerad EGS?
- The hardware and components featured in the Styrdon programmerad EGS are specific to the 3 Series E36 320i produced during 1991. These technical specifications ensure that parts like the Styrdon egs (24601219618) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Styrdon programmerad EGS assembly?
- Each item in the Styrdon programmerad EGS corresponds to the numbered list below the illustration. For the 3 Series E36 320i, you can identify the Styrdon egs by locating its position on the schematic, which then links to the official BMW part number 24601219618 for the Växellåda - automatisk section.
