GA6L45R avdrivning for BMW 3 Series E90 LCI 320i (2011)

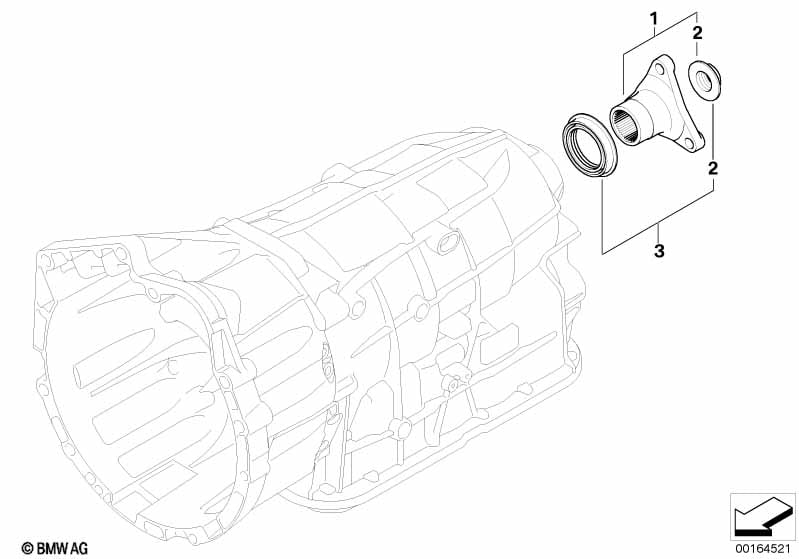

This GA6L45R avdrivning technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| För fordon med Styrning växellådstyp |
S2TMA=Ja |
|||||||||
| 01 | Set utgående axelfläns | 1 | 09/2010 | 24207581607 | $189.06 | Shop at ECS Tuning | ||||
| 02 | Flänsmutter | 1 | 09/2010 | 24207572623 | $17.00 | Shop at ECS Tuning | ||||
| 03 | Set tätningsring utgående drivaxel | 1 | 09/2010 | 24137581608 | $172.14 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 320i GA6L45R avdrivning?
- This technical diagram illustrates the GA6L45R avdrivning within the Växellåda - automatisk group for the 3 Series E90 LCI 320i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Set utgående axelfläns (Part #24207581607).
- Which models use the hardware listed in this GA6L45R avdrivning?
- The hardware and components featured in the GA6L45R avdrivning are specific to the 3 Series E90 LCI 320i produced during 2011. These technical specifications ensure that parts like the Set utgående axelfläns (24207581607) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GA6L45R avdrivning assembly?
- Each item in the GA6L45R avdrivning corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 320i, you can identify the Set utgående axelfläns by locating its position on the schematic, which then links to the official BMW part number 24207581607 for the Växellåda - automatisk section.
