A5S310Z drivkoppling B/bromsband c2 for BMW 3 Series E36 328i (1994)

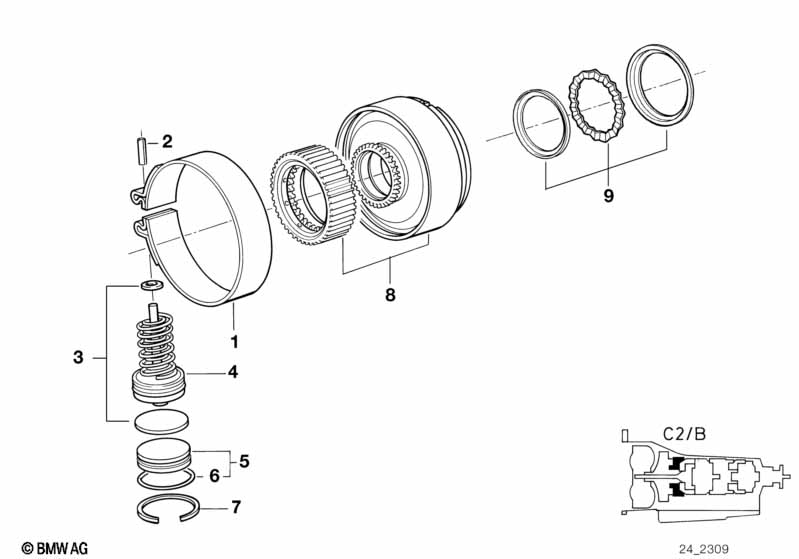

This A5S310Z drivkoppling B/bromsband c2 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bromsband | 1 | 24231421346 | $48.16 | Shop at ECS Tuning | |||||
| 02 | Bultar | 1 | 24231219438 | $1.68 | Avslutad | Shop at ECS Tuning | ||||
| 03 | Sats justerplaata | 1 | 24231421723 | $78.62 | Shop at ECS Tuning | |||||
| 04 | Kolv | 1 | 24231219440 | $68.85 | Shop at ECS Tuning | |||||
| 05 | Lock | 1 | 24231219443 | $9.73 | Avslutad | Shop at ECS Tuning | ||||
| 06 | O-ring | 1 | 24231206106 | $3.62 | Shop at ECS Tuning | |||||
| 07 | Laasring | 1 | 24231219515 | $2.09 | Shop at ECS Tuning | |||||
| 08 | Koppling B | 1 | 24237506680 | $767.25 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Sats justerplaata | 1 | 24271421722 | $69.13 | Avslutad | Shop at ECS Tuning | ||||
| 09 | AX-lager | 1 | 24231219895 | $20.31 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Sats justerplaata | 1 | 24271421722 | $69.13 | Avslutad | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 328i A5S310Z drivkoppling B/bromsband c2?
- This technical diagram illustrates the A5S310Z drivkoppling B/bromsband c2 within the Växellåda - automatisk group for the 3 Series E36 328i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Bromsband (Part #24231421346).
- Which models use the hardware listed in this A5S310Z drivkoppling B/bromsband c2?
- The hardware and components featured in the A5S310Z drivkoppling B/bromsband c2 are specific to the 3 Series E36 328i produced during 1994. These technical specifications ensure that parts like the Bromsband (24231421346) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the A5S310Z drivkoppling B/bromsband c2 assembly?
- Each item in the A5S310Z drivkoppling B/bromsband c2 corresponds to the numbered list below the illustration. For the 3 Series E36 328i, you can identify the Bromsband by locating its position on the schematic, which then links to the official BMW part number 24231421346 for the Växellåda - automatisk section.
