A5S440Z parkspaerrning for BMW 7 Series E38 740i (1998)

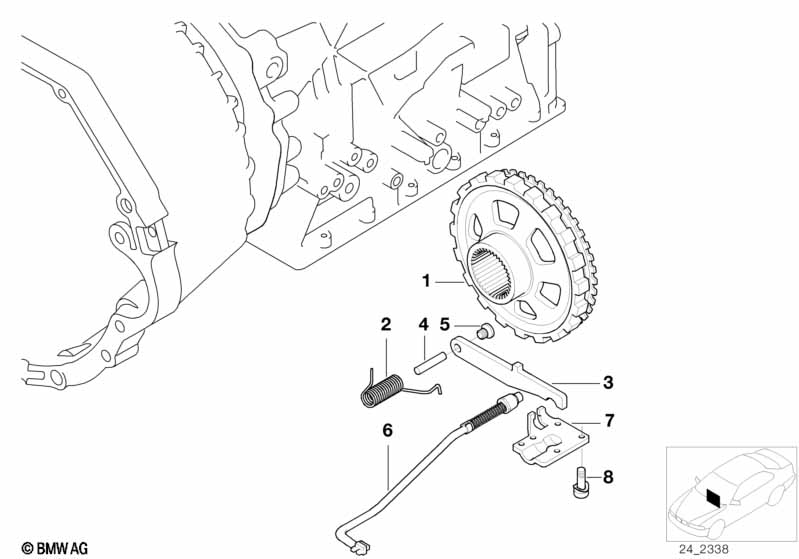

This A5S440Z parkspaerrning technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Parkspaerrningsrad | 1 | 24531422670 | $178.72 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 01 | Parkspaerrningsrad | 1 | 24531422670 | $178.72 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 02 | Boejfjaeder | 1 | 24531422684 | $2.14 | Avslutad | Shop at ECS Tuning | ||||
| 02 | Boejfjaeder | 1 | 24531422684 | $2.14 | Avslutad | Shop at ECS Tuning | ||||
| 03 | Spaerr | 1 | 24531219285 | $58.10 | Shop at ECS Tuning | |||||
| 03 | Spaerr | 1 | 24531219285 | $58.10 | Shop at ECS Tuning | |||||
| 04 | Bultar | 1 | 24531219284 | $3.71 | Shop at ECS Tuning | |||||
| 04 | Bultar | 1 | 24531219284 | $3.71 | Shop at ECS Tuning | |||||
| 05 | Taetn.skruvar med packning | M12X1,5 | 1 | 24117552350 | $6.35 | Shop at ECS Tuning | ||||
| 05 | Taetn.skruvar med packning | M12X1,5 | 1 | 24117552350 | $6.35 | Shop at ECS Tuning | ||||
| 06 | Förbindelsestag | 1 | 24531422685 | $20.20 | Shop at ECS Tuning | |||||
| 06 | Förbindelsestag | 1 | 24531422685 | $20.20 | Shop at ECS Tuning | |||||
| 07 | Styrplatta | 1 | 24531219287 | $25.86 | Shop at ECS Tuning | |||||
| 07 | Styrplatta | 1 | 24531219287 | $25.86 | Shop at ECS Tuning | |||||
| 08 | Skruv ctt | M6X20 | 4 | 24531215476 | $1.75 | Shop at ECS Tuning | ||||
| 08 | Skruv ctt | M6X20 | 4 | 24531215476 | $1.75 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
