Grundstyrdon egs for BMW 3 Series E46 318i (2001)

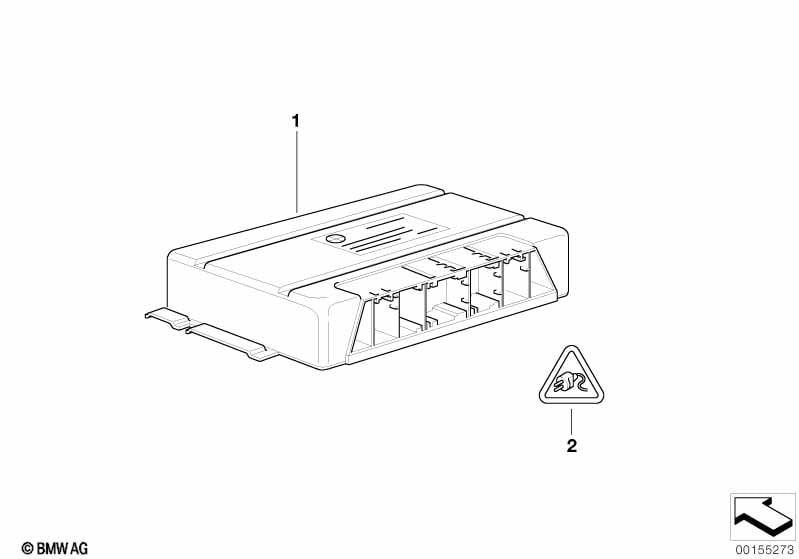

This Grundstyrdon egs technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grundstyrdon egs | GS20 | 1 | 09/2001 | 24607508145 | $982.74 | Shop at ECS Tuning | |||
| 02 | Stickkontaktkaapa | 20 POL. /A | 1 | 12521744630 | $1.73 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Hylskontakt MQS ELA | 0.2-0.5 MM² SN | 1 | 61131393704 | $0.23 | Shop at ECS Tuning | ||||
| -- | Stickkontaktkaapa | 20 POL. | 1 | 12521744631 | $1.73 | Shop at ECS Tuning | ||||
| -- | Skydd | 40 POL. | 1 | 12521744651 | $4.88 | Avslutad | Shop at ECS Tuning | |||
Notering
- Avslutad = delen tillverkas inte längre.
