Vaexlingdelar for BMW 5 Series E60 525i (2007)

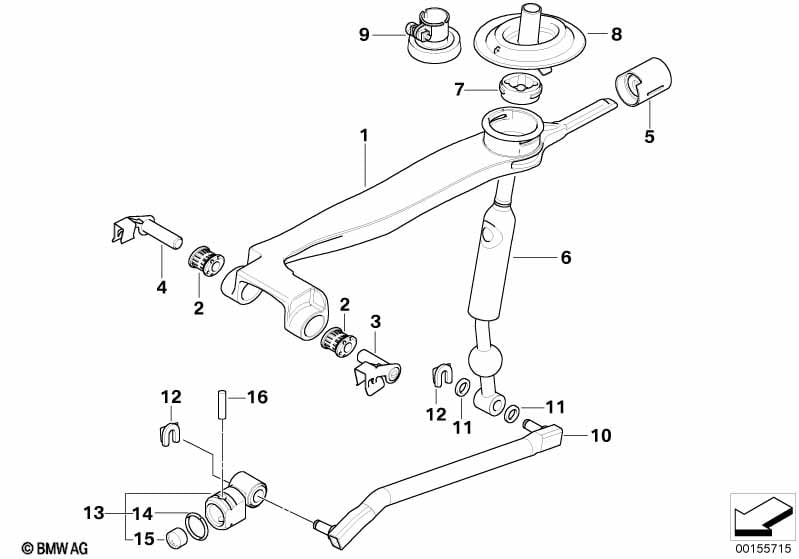

This Vaexlingdelar technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | För fordon med Automatväxel och Sport automatisk växellåda |
S205A=Nej S2TBA=Nej |
||||||||
| 01 | Kopplingsarm | 1 | 25117533263 | $27.05 | Shop at ECS Tuning | |||||
| 02 | Lagerbussning oval | L=26MM/SCHWARZ | 2 | 09/2005 | 25117507695 | $2.93 | Shop at ECS Tuning | |||
| 03 | Lagerbult | 1 | 25117529079 | $5.23 | Shop at ECS Tuning | |||||
| 04 | Lagerbult | 1 | 25117529078 | $5.23 | Shop at ECS Tuning | |||||
| 05 | Lager kopplingsarm | 1 | 25111222015 | $17.40 | Shop at ECS Tuning | |||||
| 06 | Inkopplingsgaffel | 1 | 25117546372 | $72.63 | Shop at ECS Tuning | |||||
| 07 | Lager inkopplingsgaffel | 1 | 25111220600 | $10.33 | Shop at ECS Tuning | |||||
| 08 | Veckad bälg | 1 | 25117519775 | $17.48 | Shop at ECS Tuning | |||||
| 09 | Svängningsdämpare | F=32 HZ | 1 | 25117548777 | $78.40 | Shop at ECS Tuning | ||||
| 10 | Växelstång | 1 | 25117533265 | $34.68 | +stomme | Shop at ECS Tuning | ||||
| 11 | Bricka plast | 10X16X0,9 | 2 | 25111220439 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Saekringsclip | 2 | 25117571899 | $0.66 | Shop at ECS Tuning | |||||
| 13 | Led för växelspak | 1 | 25117580281 | $15.10 | Shop at ECS Tuning | |||||
| 14 | Laasring | 1 | 25111222451 | $0.33 | Shop at ECS Tuning | |||||
| 15 | Bricka plast | 1 | 25111434194 | $0.85 | Shop at ECS Tuning | |||||
| 16 | styrstift | 1 | 23411466134 | $0.70 | Shop at ECS Tuning | |||||
Notering
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
