Kardanaxel, kopplingsskiva/mellanlager for BMW 1502-2002tii 2002 (1974)

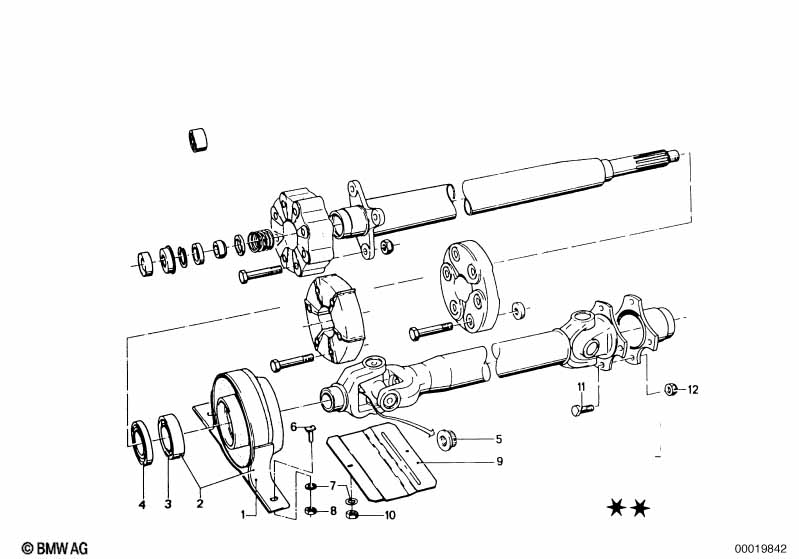

This Kardanaxel, kopplingsskiva/mellanlager technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Mellanlager | 1 | 26111206502 | $125.71 | Shop at ECS Tuning | |||||
| 03 | Lager | D=55/D=30 | 1 | 26121225071 | $26.16 | Shop at ECS Tuning | ||||
| 04 | Dammskydds | 1 | 26113748138 | $1.59 | Shop at ECS Tuning | |||||
| 05 | Flänsmutter | M18 | 1 | 26111101782 | $5.83 | Shop at ECS Tuning | ||||
| 06 | Fyrkantskruv | M8X18 | 2 | 03/1966 | 07/1977 | 23711130250 | $4.27 | Shop at ECS Tuning | ||
| 07 | Underlagsplaata | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 08 | Sexkantmutter | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 09 | Skyddsblek | 1 | 03/1966 | 07/1977 | 26111205001 | Avslutad | Shop at ECS Tuning | |||
| 10 | Sexkantmutter | M8-05-ZNNIV SI | 2 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 11 | Skruv ctt | M10X25 | 4 | 26111101015 | $0.91 | Shop at ECS Tuning | ||||
| 12 | Sexkantmutter | 4 | 26111204183 | $0.30 | Avslutad | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Kardanaxel, kopplingsskiva/mellanlager?
- This technical diagram illustrates the Kardanaxel, kopplingsskiva/mellanlager within the Kardanaxel group for the 1502-2002tii 2002 produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the Mellanlager (Part #26111206502).
- Which models use the hardware listed in this Kardanaxel, kopplingsskiva/mellanlager?
- The hardware and components featured in the Kardanaxel, kopplingsskiva/mellanlager are specific to the 1502-2002tii 2002 produced during 1974. These technical specifications ensure that parts like the Mellanlager (26111206502) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Kardanaxel, kopplingsskiva/mellanlager assembly?
- Each item in the Kardanaxel, kopplingsskiva/mellanlager corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Mellanlager by locating its position on the schematic, which then links to the official BMW part number 26111206502 for the Kardanaxel section.
