Framaxelbalk/tvaerbalk for BMW 3 Series E30 318i (1993)

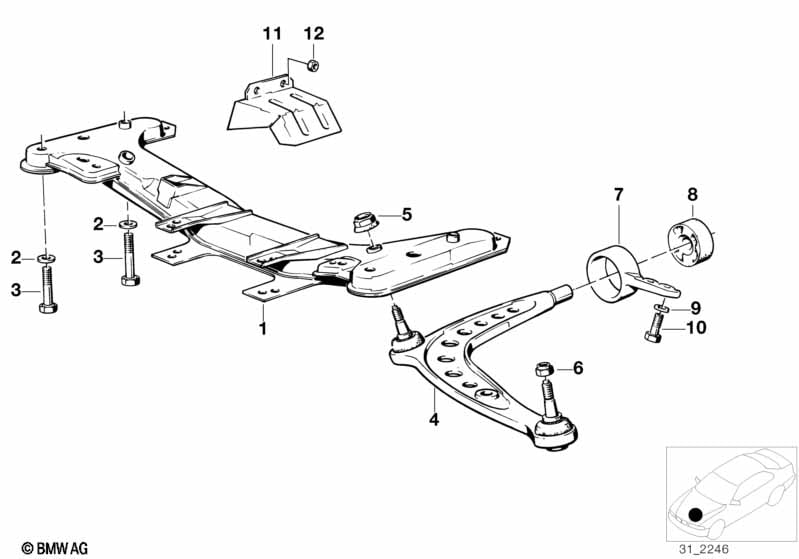

This Framaxelbalk/tvaerbalk technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Framaxelbalk | 1 | 31111130707 | $573.34 | Shop at ECS Tuning | |||||
| 02 | Underlagsplaata | A10,5X22 | 4 | 31111114348 | $0.67 | Shop at ECS Tuning | ||||
| 03 | Sexkantskruv | M10X65-10.9 | 2 | 07119905562 | $1.91 | Shop at ECS Tuning | ||||
| 04 | Bärarm vänster stål | 1 | 31121127725 | $207.56 | Shop at ECS Tuning | |||||
| 04 | Bärarm höger stål | 1 | 31121127726 | $207.56 | Shop at ECS Tuning | |||||
| 05 | Sexkantmutter självlasning | M14X1,5-05 ZNS3 | 2 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 06 | Sexkantmutter självlasning | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| 07 | Hållare knäledsanordning vänster | 1 | 31121139789 | $41.72 | Avslutad | Shop at ECS Tuning | ||||
| 07 | Hållare knäledsanordning höger | 1 | 31121139790 | $41.72 | Avslutad | Shop at ECS Tuning | ||||
| 08 | Sats motorfäste knäledsanordning | 1 | 31129058931 | $40.04 | Shop at ECS Tuning | |||||
| För fordon med Kimatanläggning |
=Ja |
|||||||||
| 08 | Sats motorfäste knäledsanordning | 1 | 31129058931 | $40.04 | Shop at ECS Tuning | |||||
| 09 | Underlagsplaata | A10,5X22 | 4 | 31111114348 | $0.67 | Shop at ECS Tuning | ||||
| 10 | Sexkantskruv | M10X40 | 4 | 31111137888 | $3.33 | Shop at ECS Tuning | ||||
| 11 | Vaermeskydd blek | 1 | 31121127618 | $6.38 | Shop at ECS Tuning | |||||
| 12 | Plaatmutter | D=18MM, ZNS-3 | 2 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
