Framaxelbalk/tvaerbalk for BMW 5 Series E39 530i (2003)

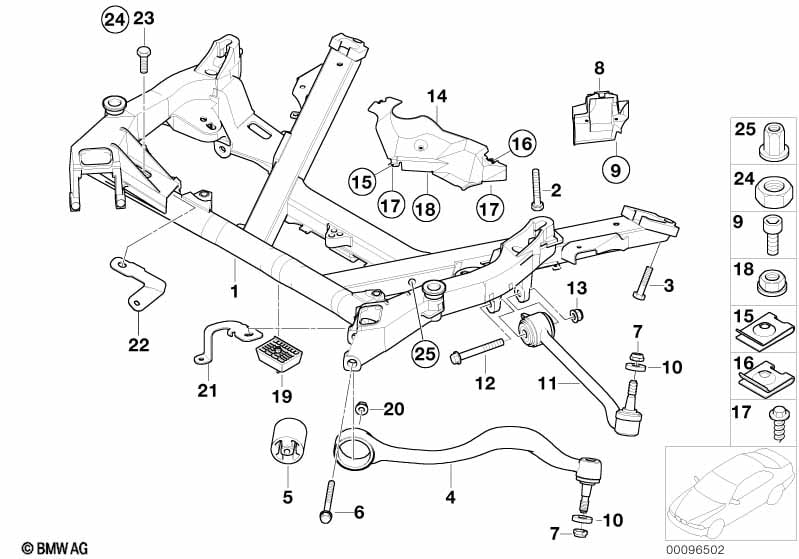

This Framaxelbalk/tvaerbalk technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Framaxelbalk | 1 | 09/2001 | 31106755072 | $972.92 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Vagnlyftareinfogning | 1 | 09/2001 | 31111093712 | $3.89 | Shop at ECS Tuning | ||||
| 02 | Sexkantskruv med bricka | M12X1,5X70 ZNS | 4 | 07119906950 | Shop at ECS Tuning | |||||
| 03 | Sexkantskruv med bricka | M12X1,5X50-8.8 | 2 | 31121092165 | $1.47 | Shop at ECS Tuning | ||||
| 04 | Dragstång vänster utan Gummilager | 1 | 31121141717 | $159.09 | Shop at ECS Tuning | |||||
| 04 | Dragstång höger utan Gummilager | 1 | 31121141718 | $159.09 | Shop at ECS Tuning | |||||
| 05 | Sats motorfäste dragstaang | 1 | 31129068753 | $69.97 | Shop at ECS Tuning | |||||
| 06 | Sexkantskruv med bricka | M12X1,5X120 | 2 | 31106769441 | $2.96 | Shop at ECS Tuning | ||||
| 07 | Sexkantmutter självlasning | M14X1,5 05 ZNS3 | 4 | 31106769443 | $1.35 | Shop at ECS Tuning | ||||
| 08 | Avtaeckning hoeger | 1 | 31121097202 | $2.43 | Shop at ECS Tuning | |||||
| 08 | Avtäckning vänster | 1 | 31141093275 | $2.43 | Shop at ECS Tuning | |||||
| 09 | Sexkantskruv med bricka | M6X12-U1 | 4 | 07119904511 | $0.62 | Shop at ECS Tuning | ||||
| 10 | Underlagsplaata | ZNS3 | 4 | 31106779382 | $2.88 | Shop at ECS Tuning | ||||
| 11 | Reparationssats länkarm vänster | VALUE PARTS | 1 | 31122341219 | Shop at ECS Tuning | |||||
| Fästdetaljer bifogas | ||||||||||
| 11 | Reparationssats länkarm höger | VALUE PARTS | 1 | 31122341296 | Shop at ECS Tuning | |||||
| Fästdetaljer bifogas | ||||||||||
| 12 | Flänsskruv | M12X1,5X95-10.9 | 2 | 31306779823 | $2.33 | Shop at ECS Tuning | ||||
| 13 | Självlasning mutter | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| 14 | Vaermeskydd blek | 1 | 31141093005 | $11.00 | Shop at ECS Tuning | |||||
| 15 | Plaatmutter | ST4,2-2ZNS | 2 | 07129901645 | $0.11 | Shop at ECS Tuning | ||||
| 16 | Plaatmutter | ST4,2-4 | 1 | 07129904144 | $0.09 | Shop at ECS Tuning | ||||
| 17 | Plaatskruv | 4,2X16 | 3 | 07119904265 | Shop at ECS Tuning | |||||
| 18 | Sexkantmutter | M8-05-ZNNIV SI | 1 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 19 | Vagnlyftareinfogning | 1 | 31111093712 | $3.89 | Shop at ECS Tuning | |||||
| 20 | Självlasning mutter | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| 22 | Haallare tryckslang hoeger | 1 | 09/2001 | 32416752868 | $3.72 | Shop at ECS Tuning | ||||
| 24 | Sexkantmutter med fläns | M10-10 ZNS3 | 1 | 09/2001 | 33306760587 | $0.78 | Shop at ECS Tuning | |||
