Steunleger/fjaederunderlaegg/mont.detalj for BMW 5 Series E61 530xd (2007)

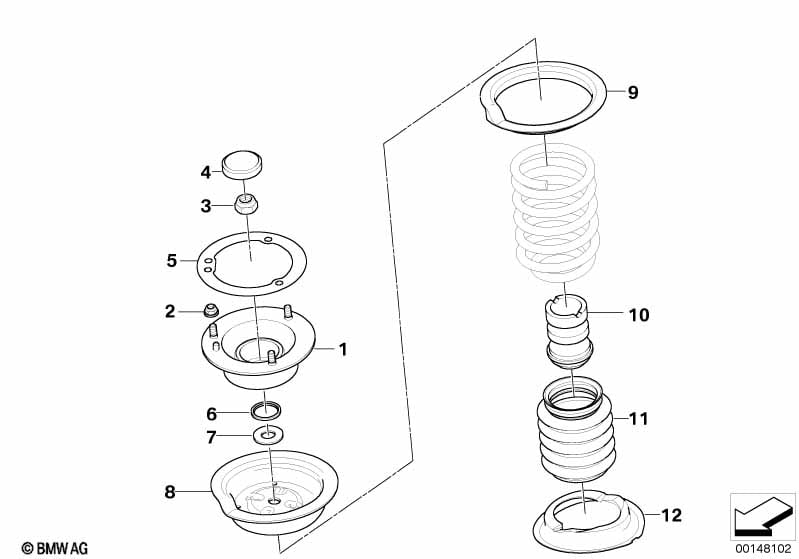

This Steunleger/fjaederunderlaegg/mont.detalj technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 530xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stödlager | 2 | 10/2008 | 31306775098 | $125.53 | Shop at ECS Tuning | ||||
| 01 | Reparationssats stödlager | VALUE PARTS | 2 | 10/2008 | 31352348003 | Shop at ECS Tuning | ||||
| Observera reparationsanvisningen. Satsen innehåller alla fästelement! |
||||||||||
| 02 | Självlasning mutter | M8-8 ZNS3 | 6 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Sexkantmutter självlasning | M14X1,5-05 ZNS3 | 2 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 04 | Skydd | D=32MM | 2 | 31311139453 | $1.48 | Shop at ECS Tuning | ||||
| 05 | Packning | 2 | 10/2008 | 31306772226 | $1.36 | Shop at ECS Tuning | ||||
| 06 | Dammskydds manchett | 2 | 31331110196 | $1.84 | Shop at ECS Tuning | |||||
| 07 | Underlagsplaata | D=55MM | 2 | 31306763966 | $4.24 | Shop at ECS Tuning | ||||
| 08 | Fjaederbricka ovan med distansring | 2 | 31326769667 | $10.63 | Shop at ECS Tuning | |||||
| 09 | Fjaederunderlaegg oevre | 2 | 31331091867 | $3.73 | Shop at ECS Tuning | |||||
| 10 | Extra dämpare fram | 2 | 31306774699 | $21.35 | Shop at ECS Tuning | |||||
| 11 | Skyddsroer | 2 | 31331094749 | $3.76 | Shop at ECS Tuning | |||||
| 12 | Fjaederunderlaegg nedan | 2 | 31336764372 | $1.85 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 530xd Steunleger/fjaederunderlaegg/mont.detalj?
- This technical diagram illustrates the Steunleger/fjaederunderlaegg/mont.detalj within the Framaxel group for the 5 Series E61 530xd produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Stödlager (Part #31306775098).
- Which models use the hardware listed in this Steunleger/fjaederunderlaegg/mont.detalj?
- The hardware and components featured in the Steunleger/fjaederunderlaegg/mont.detalj are specific to the 5 Series E61 530xd produced during 2007. These technical specifications ensure that parts like the Stödlager (31306775098) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steunleger/fjaederunderlaegg/mont.detalj assembly?
- Each item in the Steunleger/fjaederunderlaegg/mont.detalj corresponds to the numbered list below the illustration. For the 5 Series E61 530xd, you can identify the Stödlager by locating its position on the schematic, which then links to the official BMW part number 31306775098 for the Framaxel section.
