Ratt for BMW 3 Series E30 318i (1991)

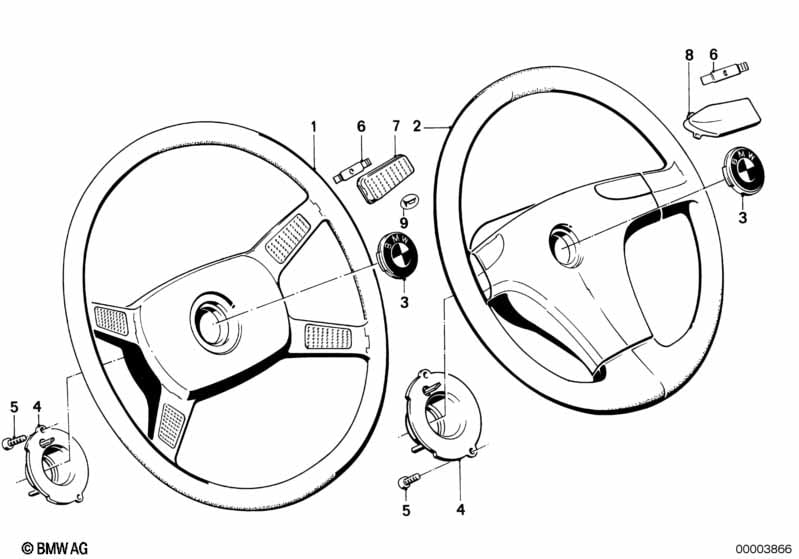

This Ratt technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ratt | 380MM | 1 | 32331154131 | $322.50 | Shop at ECS Tuning | ||||
| 03 | Plakett | 1 | 32331117279 | $7.32 | Shop at ECS Tuning | |||||
| 04 | Slaepring | 1 | 32331152896 | $10.25 | Shop at ECS Tuning | |||||
| 05 | Linsskruv | M3,5X8 | 2 | 32331117126 | $0.50 | Shop at ECS Tuning | ||||
| 06 | Kontaktfjäder | X | 32331150830 | $1.12 | Avslutad | Shop at ECS Tuning | ||||
| 07 | Signal tangent | 4 | 32331152898 | $2.96 | Shop at ECS Tuning | |||||
| 08 | Signal tangent vänster | 1 | 32331152419 | $2.43 | Avslutad | Shop at ECS Tuning | ||||
| 08 | Signal tangent höger | 1 | 32331152420 | $2.43 | Avslutad | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Ratt?
- This technical diagram illustrates the Ratt within the Styrning group for the 3 Series E30 318i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Ratt (Part #32331154131).
- Which models use the hardware listed in this Ratt?
- The hardware and components featured in the Ratt are specific to the 3 Series E30 318i produced during 1991. These technical specifications ensure that parts like the Ratt (32331154131) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ratt assembly?
- Each item in the Ratt corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Ratt by locating its position on the schematic, which then links to the official BMW part number 32331154131 for the Styrning section.
