Styrkolonn-raattstang uppe for BMW 3 Series E36 318i (1998)

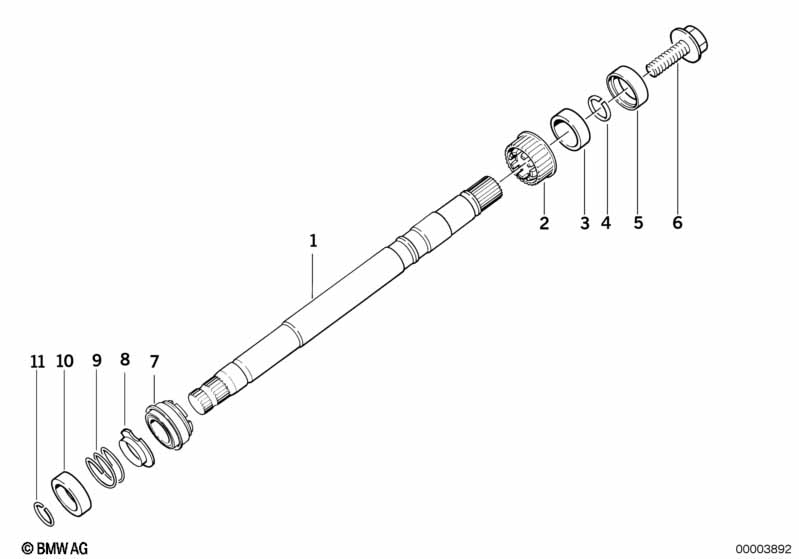

This Styrkolonn-raattstang uppe technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Raattstang oevre | 1 | 32311159160 | $63.37 | Shop at ECS Tuning | |||||
| 02 | Rattroerlager plast | 1 | 32311158835 | $10.93 | Shop at ECS Tuning | |||||
| 03 | Stödring | 1 | 32311158478 | $2.43 | Shop at ECS Tuning | |||||
| 04 | Laasring | 1 | 32311157968 | $0.25 | Shop at ECS Tuning | |||||
| 05 | Ring | 1 | 32311157966 | $1.82 | Shop at ECS Tuning | |||||
| 06 | Torxskruv mikroinkapslad | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| 07 | Rattroerlager stael | 1 | 32311158686 | $31.56 | Shop at ECS Tuning | |||||
| 08 | Stödring | 1 | 32311116374 | $0.93 | Shop at ECS Tuning | |||||
| 09 | Tryckfjäder | 1 | 32331156895 | $0.75 | Shop at ECS Tuning | |||||
| 10 | Ring | 1 | 32311112959 | $3.83 | Shop at ECS Tuning | |||||
| 11 | Laasring | 1 | 32311113566 | $0.37 | Shop at ECS Tuning |
