Styrkolonn-raattstang nere for BMW 3 Series E36 318i (1995)

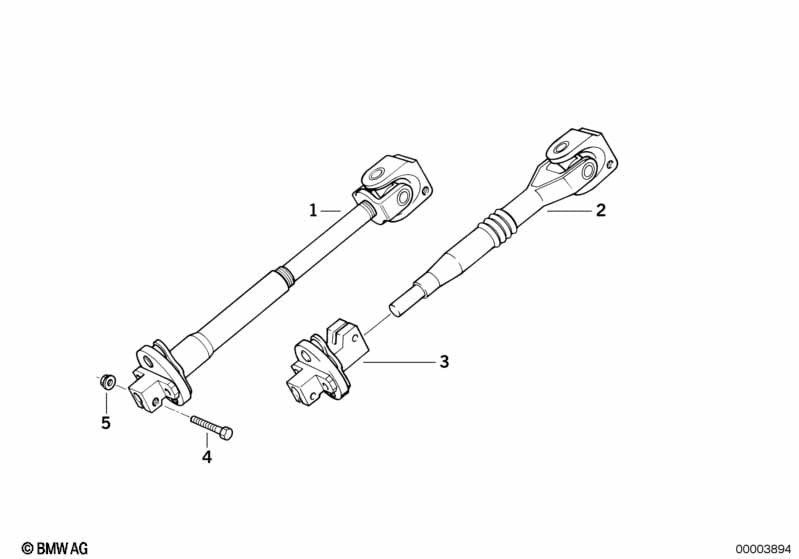

This Styrkolonn-raattstang nere technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | PASS.ENDAST TILL SERVOSTYRNING | |||||||||
| 02 | Raattstang undre | 1 | 12/1991 | 32311159866 | $140.82 | Shop at ECS Tuning | ||||
| 03 | Hardy-skiva | 1 | 12/1991 | 32311092949 | $53.88 | Shop at ECS Tuning | ||||
| 04 | Sexkantskruv | M8X38 | 3 | 12/1991 | 32306780704 | Shop at ECS Tuning | ||||
| 05 | Sexkantmutter självlasning | M8 | 3 | 12/1991 | 07129922716 | $0.36 | Shop at ECS Tuning | |||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318i Styrkolonn-raattstang nere?
- This technical diagram illustrates the Styrkolonn-raattstang nere within the Styrning group for the 3 Series E36 318i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Raattstang undre (Part #32311159866).
- Which models use the hardware listed in this Styrkolonn-raattstang nere?
- The hardware and components featured in the Styrkolonn-raattstang nere are specific to the 3 Series E36 318i produced during 1995. These technical specifications ensure that parts like the Raattstang undre (32311159866) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Styrkolonn-raattstang nere assembly?
- Each item in the Styrkolonn-raattstang nere corresponds to the numbered list below the illustration. For the 3 Series E36 318i, you can identify the Raattstang undre by locating its position on the schematic, which then links to the official BMW part number 32311159866 for the Styrning section.
