Servostyrning-oljelednings for BMW 5 Series E39 525i (2003)

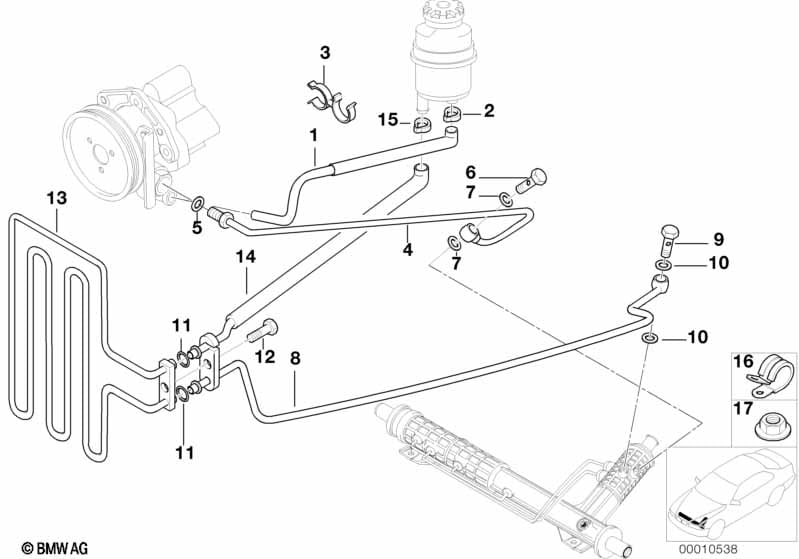

This Servostyrning-oljelednings technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Insugningsroer | 1 | 32411095526 | $32.68 | Shop at ECS Tuning | |||||
| 02 | Slangklaemma | D=20,9-24,1 | 2 | 32111131345 | $2.12 | Shop at ECS Tuning | ||||
| 03 | Slangfaeste | 1 | 64216904030 | $1.10 | Shop at ECS Tuning | |||||
| 04 | Tryckslang | 1 | 09/1998 | 32411096731 | Shop at ECS Tuning | |||||
| 05 | Packning | D=7,65MM | 1 | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 06 | Nippelskruv med backventil | M14X1,5X27,4 | 1 | 32416781261 | $10.02 | Shop at ECS Tuning | ||||
| 07 | Packning | A14X20-CUSN | 2 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 08 | Returledning | LHD | 1 | 32411093149 | $76.31 | Shop at ECS Tuning | ||||
| 09 | Banjobult | M16X28 | 1 | 32416852470 | Shop at ECS Tuning | |||||
| 10 | Packning | A16X22-CUSN | 2 | 32411093597 | $0.27 | Shop at ECS Tuning | ||||
| 11 | O-ring | 10,82X1,78/FPM | 2 | 17211742636 | $0.80 | Shop at ECS Tuning | ||||
| 12 | Sexkantskruv med bricka | M8X30-Z3 | 1 | 07119915085 | $0.62 | Shop at ECS Tuning | ||||
| 13 | Kylslinga | 1 | 17111141819 | $107.30 | Shop at ECS Tuning | |||||
| 14 | Kylarreturledning | 1 | 32411094306 | $41.26 | Shop at ECS Tuning | |||||
| 15 | Slangklaemma | D=16,6-20MM | 1 | 16121180242 | $1.08 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525i Servostyrning-oljelednings?
- This technical diagram illustrates the Servostyrning-oljelednings within the Styrning group for the 5 Series E39 525i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Insugningsroer (Part #32411095526).
- Which models use the hardware listed in this Servostyrning-oljelednings?
- The hardware and components featured in the Servostyrning-oljelednings are specific to the 5 Series E39 525i produced during 2003. These technical specifications ensure that parts like the Insugningsroer (32411095526) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Servostyrning-oljelednings assembly?
- Each item in the Servostyrning-oljelednings corresponds to the numbered list below the illustration. For the 5 Series E39 525i, you can identify the Insugningsroer by locating its position on the schematic, which then links to the official BMW part number 32411095526 for the Styrning section.
