Servostyrning-oljelednings for BMW 5 Series E39 540i (1996)

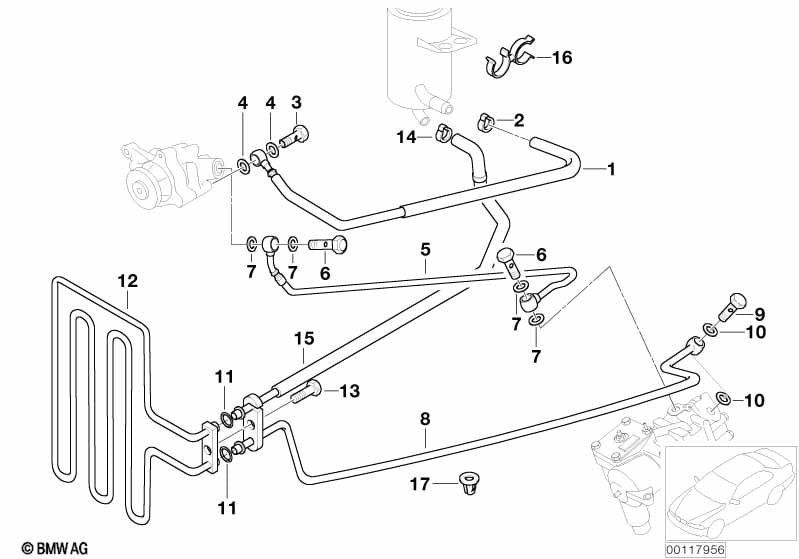

This Servostyrning-oljelednings technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sugslang | 1 | 32411094277 | $41.83 | Shop at ECS Tuning | |||||
| 02 | Slangklaemma | D=20,9-24,1 | 1 | 32111131345 | $2.12 | Shop at ECS Tuning | ||||
| 03 | Banjobult | M18X32 | 1 | 32411117183 | $7.53 | Avslutad | Shop at ECS Tuning | |||
| 04 | Packning | A18X24-CUSN | 2 | 32411093598 | $0.71 | Shop at ECS Tuning | ||||
| 05 | Tryckslang | 1 | 09/1998 | 32411094895 | Shop at ECS Tuning | |||||
| 06 | Banjobult | M14X1,5X26 | 2 | 32416852469 | Shop at ECS Tuning | |||||
| 07 | Packning | A14X20-CUSN | 4 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 08 | Returledning | 1 | 32411094896 | $108.07 | Shop at ECS Tuning | |||||
| 10 | Packning | A16X22-CUSN | 2 | 32411093597 | $0.27 | Shop at ECS Tuning | ||||
| 11 | O-ring | 10,82X1,78/FPM | 2 | 17211742636 | $0.80 | Shop at ECS Tuning | ||||
| 12 | Kylslinga | 1 | 17111141819 | $107.30 | Shop at ECS Tuning | |||||
| 13 | Faestskruv | M8X28-Z3 | 1 | 06/2000 | 17227555715 | $0.78 | Shop at ECS Tuning | |||
| 13 | Sexkantskruv med bricka | M8X30-Z3 | 1 | 07119915085 | $0.62 | Shop at ECS Tuning | ||||
| 14 | Slangklaemma | D=16,6-20MM | 1 | 16121180242 | $1.08 | Shop at ECS Tuning | ||||
| 15 | Returledning | 1 | 32411095515 | $41.26 | +stomme | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
