Styrkolonn-instelbar/detaljen for BMW 3 Series E46 318i (2003)

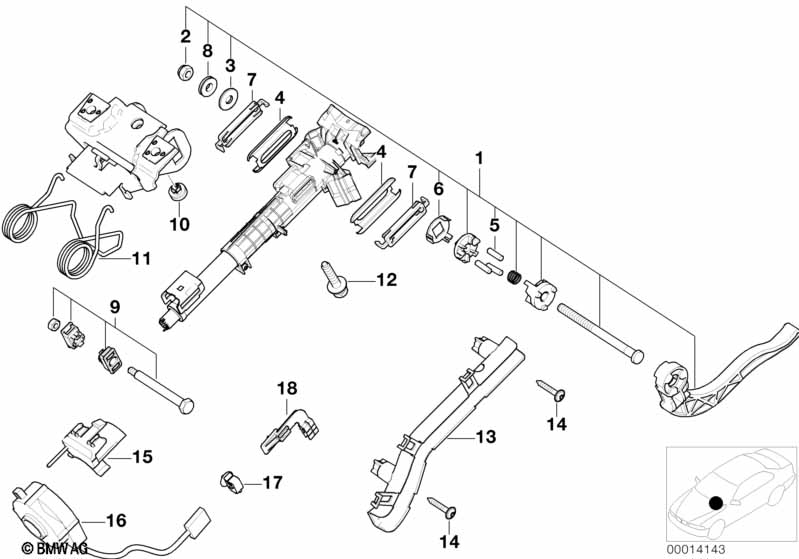

This Styrkolonn-instelbar/detaljen technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Taendningsinstaellningsarm | 1 | 32301095299 | $17.76 | Shop at ECS Tuning | |||||
| 02 | Säkringsmutter | M8 | 1 | 32301095303 | $0.50 | Avslutad | Shop at ECS Tuning | |||
| 03 | Bricka för justerarm | 1 | 32301095722 | $0.65 | Shop at ECS Tuning | |||||
| 04 | Rivplåt | 1 | 32301095759 | $1.03 | Shop at ECS Tuning | |||||
| 05 | Rulle | 3 | 32301095300 | $6.95 | Shop at ECS Tuning | |||||
| 06 | Bricka | 1 | 32301095723 | $0.44 | Shop at ECS Tuning | |||||
| 07 | Stopp längsjustering | 2 | 32301095297 | $2.08 | Avslutad | Shop at ECS Tuning | ||||
| 08 | Axialnaallager | 8X19X4MM | 1 | 32301095302 | $3.45 | Shop at ECS Tuning | ||||
| 09 | Styrning bussning | 1 | 32301095306 | $6.12 | Shop at ECS Tuning | |||||
| 10 | Stopp höjdjustering | 1 | 32301095298 | $1.62 | Shop at ECS Tuning | |||||
| 11 | Boejfjaeder | 1 | 32301095310 | $3.83 | Shop at ECS Tuning | |||||
| 12 | Sexkantskruv | M8X36-8.8-ZNS3 | 1 | 32301094716 | $0.70 | Shop at ECS Tuning | ||||
| 13 | Kabelkanal | 1 | 32311094293 | $3.12 | Shop at ECS Tuning | |||||
| 14 | Skruv laagvaelvd | 2 | 32303450197 | $0.95 | Shop at ECS Tuning | |||||
| För fordon med Dynamisk stabilitetskontroll |
S210A=Ja |
|||||||||
| 15 | Hållare styrvinkelsensor | 1 | 32301094904 | $3.32 | Shop at ECS Tuning | |||||
| 16 | Styrvinkel-sensor | 1 | 32306793632 | $271.94 | Shop at ECS Tuning | |||||
| 17 | Kabelclipps | 1 | 61138350836 | $0.42 | Shop at ECS Tuning | |||||
| 18 | Hållare insticksanslutning svart | 1 | 32301095721 | $1.62 | Shop at ECS Tuning | |||||
| För fordon med Dynamisk stabilitetskontroll |
S210A=Ja |
|||||||||
| 18 | Hållare insticksanslutning svart | 1 | 32301095721 | $1.62 | Shop at ECS Tuning | |||||
Notering
- Avslutad = delen tillverkas inte längre.
