Styrningselement/parallellstags for BMW 5 Series E39 525i (2003)

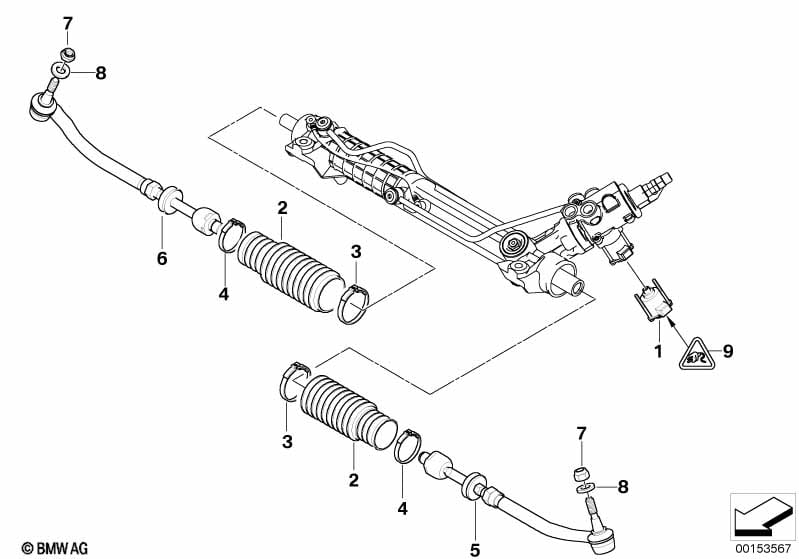

This Styrningselement/parallellstags technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| För fordon med Servostyrning-servotronic |
S216A=Ja |
|||||||||
| 01 | Transformator | 1 | 06/1999 | 32106767407 | $245.46 | Shop at ECS Tuning | ||||
| STYRDON SERVOTRONIC I grundmodul HG 61 innehåller |
||||||||||
| 02 | Veckad bälg | 2 | 32131092876 | $8.30 | Shop at ECS Tuning | |||||
| 03 | Spaennband | 2 | 32111137132 | $2.40 | Shop at ECS Tuning | |||||
| 04 | Spaennband | 2 | 32131094100 | $2.43 | Shop at ECS Tuning | |||||
| 05 | Parallellstag vaenster | 1 | 32111094673 | $115.10 | Shop at ECS Tuning | |||||
| 06 | Parallellstag hoeger | 1 | 32111094674 | $115.10 | Shop at ECS Tuning | |||||
| 07 | Sexkantmutter självlasning | M12X1,5 | 2 | 32211094586 | $0.91 | Shop at ECS Tuning | ||||
| 08 | Underlagsplaata | 2 | 32211091740 | $4.45 | Shop at ECS Tuning | |||||
| 09 | Kontakthus | 2 POL. | 1 | 12521732460 | $6.38 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Bladfjäderkontakt MDK4 2.8 med kabel | 1,0 MM²/SN | X | 12520007252 | $2.03 | Shop at ECS Tuning | ||||
| -- | Flatkontakthylsa | 1,0-2,5MM² | X | 12521718050 | $0.33 | Avslutad | Shop at ECS Tuning | |||
| -- | Enkelledartätning | 0,13-1,0 MM² | 2 | 12521732592 | $0.38 | Shop at ECS Tuning | ||||
| -- | Packning | 2-POL | 1 | 12521732593 | $1.11 | Avslutad | Shop at ECS Tuning | |||
Notering
- Avslutad = delen tillverkas inte längre.
