Ratt Airbag-Smart multifunktion for BMW 3 Series E46 318i (2003)

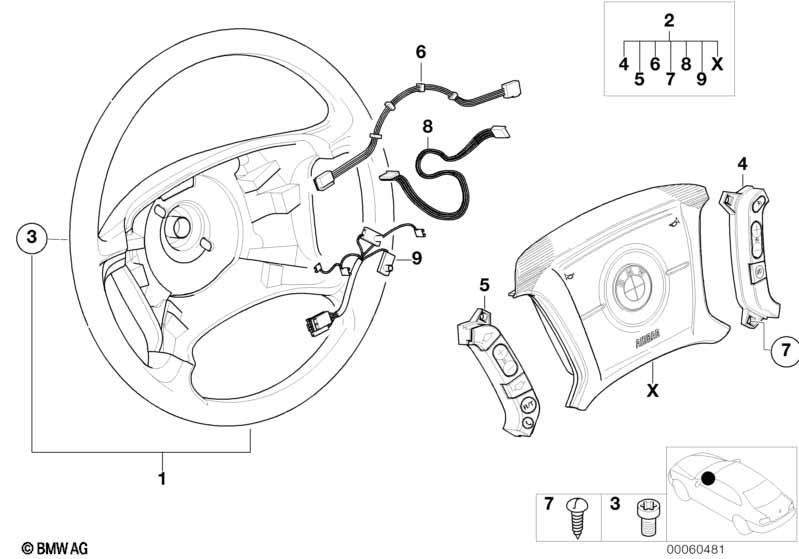

This Ratt Airbag-Smart multifunktion technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Reservdel med X inte finns som enstaka del För fordon med Stuurratt, laeder och Multifunktion f ratt |
S240A=Ja S249A=Ja |
||||||||
| 01 | Stuurratt, laeder | 1 | 32346753947 | $368.95 | Shop at ECS Tuning | |||||
| 02 | Skydd foer styre, airbag | 1 | 07/2007 | 32306757893 | $844.98 | Avslutad | Shop at ECS Tuning | |||
| 02 | Skydd foer styre, airbag | 1 | 32306880601 | Shop at ECS Tuning | ||||||
| 03 | Torxskruv | M6X15 8.8 T30 | 2 | 32341097110 | $1.41 | Shop at ECS Tuning | ||||
| 04 | Kontakt hastighetsreglage | 1 | 61316940139 | $120.27 | +stomme | Shop at ECS Tuning | ||||
| 05 | Kontakt radio/telefon | 1 | 61316903397 | $120.27 | +stomme | Shop at ECS Tuning | ||||
| 06 | Förbindelseledning omkopplare | 1 | 61318375435 | $13.17 | Shop at ECS Tuning | |||||
| 07 | Linsskruv | M4X8 | 4 | 07119906407 | $1.64 | Shop at ECS Tuning | ||||
| 08 | Förbindelseledning ratt | 1 | 61318372918 | $6.73 | Shop at ECS Tuning | |||||
| 09 | Förbindelseledning airbag/släpring | 1 | 32306750166 | $14.72 | Shop at ECS Tuning | |||||
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
