Servostyrning-oljelednings for BMW 3 Series E46 318i (2003)

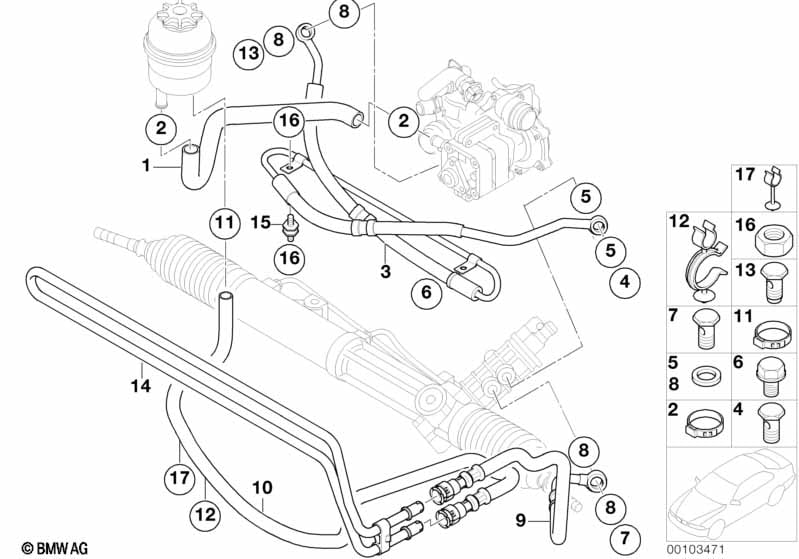

This Servostyrning-oljelednings technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sugslang | 1 | 32416850286 | Shop at ECS Tuning | ||||||
| 02 | Slangklämma | 2 | 32416751127 | $1.12 | Shop at ECS Tuning | |||||
| 03 | Tryckslang | 1 | 32416774212 | $272.92 | Shop at ECS Tuning | |||||
| 04 | Nippelskruv med backventil | M14X1,5X27,4 | 1 | 32416781261 | $10.02 | Shop at ECS Tuning | ||||
| 05 | Packning | A14X20-CUSN | 2 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 06 | Sexkantskruv med bricka | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Banjobult | M16X28 | 1 | 32416852470 | Shop at ECS Tuning | |||||
| 08 | Packning | A16X22-CUSN | 4 | 32411093597 | $0.27 | Shop at ECS Tuning | ||||
| 09 | Returledning | 1 | 32416796385 | Shop at ECS Tuning | ||||||
| 10 | Kylarreturledning | 1 | 08/2002 | 32416759633 | Shop at ECS Tuning | |||||
| 11 | Slangklämma | 1 | 32416751128 | $0.98 | Shop at ECS Tuning | |||||
| 13 | Banjobult med ansats | M16X28 | 1 | 32416781666 | $2.47 | Shop at ECS Tuning | ||||
| 14 | Kylslinga | 1 | 17111436262 | $57.27 | Shop at ECS Tuning | |||||
| 15 | Gummilager | M6 | 2 | 11727559515 | $15.60 | Shop at ECS Tuning | ||||
| 16 | Sexkantmutter | M6-8-ZNS3 | 4 | 07119905128 | $0.44 | Shop at ECS Tuning | ||||
| 17 | Slangfaeste | 2 | 08/2002 | 32416759632 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Servostyrning-oljelednings?
- This technical diagram illustrates the Servostyrning-oljelednings within the Styrning group for the 3 Series E46 318i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Sugslang (Part #32416850286).
- Which models use the hardware listed in this Servostyrning-oljelednings?
- The hardware and components featured in the Servostyrning-oljelednings are specific to the 3 Series E46 318i produced during 2003. These technical specifications ensure that parts like the Sugslang (32416850286) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Servostyrning-oljelednings assembly?
- Each item in the Servostyrning-oljelednings corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Sugslang by locating its position on the schematic, which then links to the official BMW part number 32416850286 for the Styrning section.
