Ratt Airbag-Smart for BMW 5 Series E39 525i (2003)

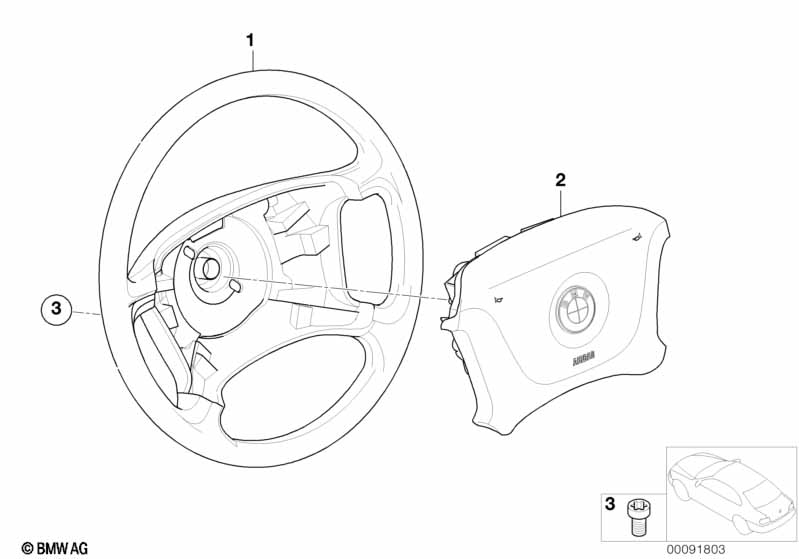

This Ratt Airbag-Smart technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Släpring, se HG 61, integrerad i Upptagande kontakt styrkolonn För fordon tillverkad från 01.09.2001 |
|||||||||
| 01 | Stuurratt, laeder | D=385MM | 1 | 09/2001 | 32346753738 | $550.00 | Avslutad | Shop at ECS Tuning | ||
| 02 | Skydd foer styre, airbag | 1 | 09/2001 | 32346753741 | Shop at ECS Tuning | |||||
| 03 | Torxskruv | M6X15 8.8 T30 | 2 | 09/2001 | 32341097110 | $1.41 | Shop at ECS Tuning | |||
Notering
- Avslutad = delen tillverkas inte längre.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525i Ratt Airbag-Smart?
- This technical diagram illustrates the Ratt Airbag-Smart within the Styrning group for the 5 Series E39 525i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Stuurratt, laeder (Part #32346753738).
- Which models use the hardware listed in this Ratt Airbag-Smart?
- The hardware and components featured in the Ratt Airbag-Smart are specific to the 5 Series E39 525i produced during 2003. These technical specifications ensure that parts like the Stuurratt, laeder (32346753738) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ratt Airbag-Smart assembly?
- Each item in the Ratt Airbag-Smart corresponds to the numbered list below the illustration. For the 5 Series E39 525i, you can identify the Stuurratt, laeder by locating its position on the schematic, which then links to the official BMW part number 32346753738 for the Styrning section.
