Servopump/Dynamic Drive/Aktiv styrning for BMW 5 Series E60 525i (2004)

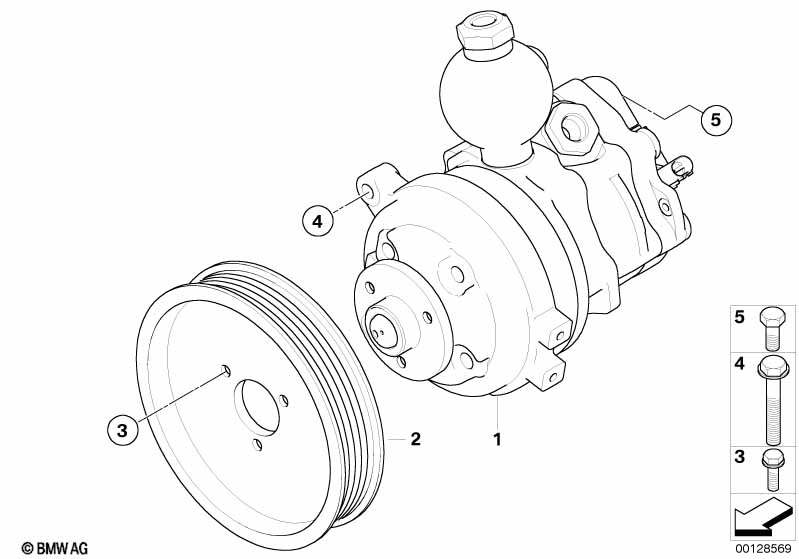

This Servopump/Dynamic Drive/Aktiv styrning technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | För fordon med Aktiv styrning och Dynamic Drive |
S217A=Ja S229A=Ja |
||||||||
| 01 | Tandempump | LFR-440 LUK | 1 | 32416761412 | $1497.15 | +stomme | Shop at ECS Tuning | |||
| 02 | Remskiva | D=108.5MM | 1 | 32421439232 | $185.16 | Shop at ECS Tuning | ||||
| 03 | Sexkantskruv med bricka | M8X14-10.9 | 3 | 32427574840 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Sexkantskruv med bricka | M8X55-U1 | 2 | 07119905391 | $1.27 | Shop at ECS Tuning | ||||
| 05 | Sexkantskruv med bricka | M8X22 | 1 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
Notering
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
