Styrenhet/vridvinkelgiv. aktiv styrning for BMW 5 Series E60 525i (2007)

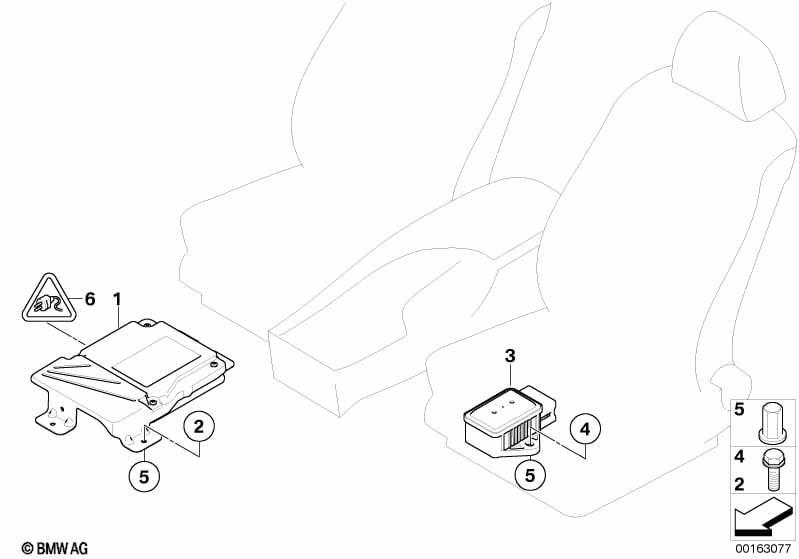

This Styrenhet/vridvinkelgiv. aktiv styrning technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | För fordon med Aktiv styrning |
S217A=Ja |
||||||||
| 06 | Stickkontaktkaapa | 32 POL. | 1 | 61136918246 | $9.50 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Honkontakt MLK 1,2 ELA | 0,35-0,5MM² AG | 30 | 61138722290 | Shop at ECS Tuning | |||||
| -- | Enkelledartätning | 0,22-1,0MM² | 30 | 12527503411 | $0.18 | Shop at ECS Tuning | ||||
| -- | Hylskontakt SLK 5,8 enkelledartätning | 4,0-6,0MM² AG | 2 | 12527514556 | $0.50 | Shop at ECS Tuning | ||||
| -- | Enkelledartätning | 4,0-6,0MM² | 2 | 12527514563 | $0.21 | Shop at ECS Tuning | ||||
