Rattstång man.instelb./Monteringsdetalj. for BMW 5 Series E60 525i (2007)

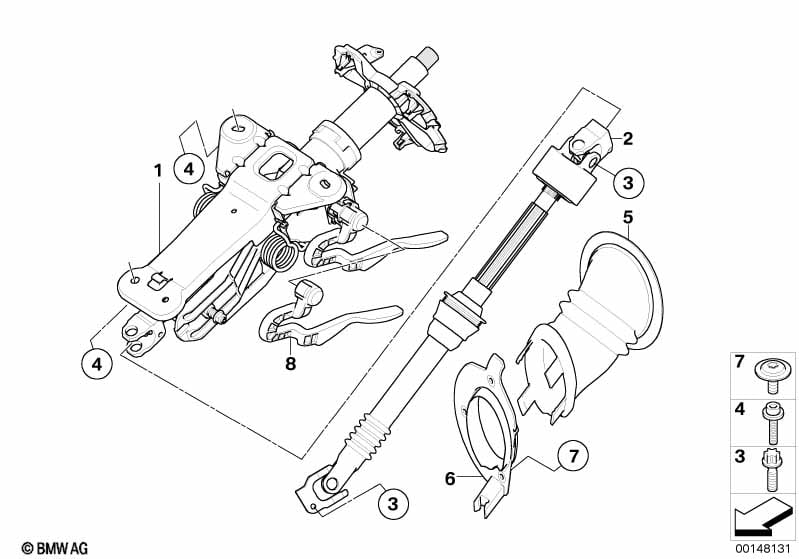

This Rattstång man.instelb./Monteringsdetalj. technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| innehåller elektrisk rattstångslås | ||||||||||
| 01 | Styrkolonn manuell instelbar | 1 | 09/2005 | 32306788840 | Shop at ECS Tuning | |||||
| 02 | Raattstang undre | 1 | 09/2005 | 32306780892 | $367.52 | Shop at ECS Tuning | ||||
| 03 | Torx skruv | M8X33 | 2 | 09/2005 | 32306778609 | $0.67 | Shop at ECS Tuning | |||
| 04 | Skruv ctt med plaata | 4 | 09/2005 | 32306766052 | $0.75 | Shop at ECS Tuning | ||||
| 05 | Styrspindelmanschett | 1 | 09/2005 | 32306767788 | $47.68 | Shop at ECS Tuning | ||||
| 06 | Hållare styrkolonn | 1 | 09/2005 | 51717060309 | $8.97 | Shop at ECS Tuning | ||||
| 07 | Torx-skruv med plaata | 3 | 09/2005 | 51233447111 | $1.14 | Shop at ECS Tuning | ||||
| 08 | Taendningsinstaellningsarm | 1 | 09/2005 | 32306768494 | Shop at ECS Tuning | |||||
