Oljehus / Detaljen for BMW 3 Series E36 318ti (1995)

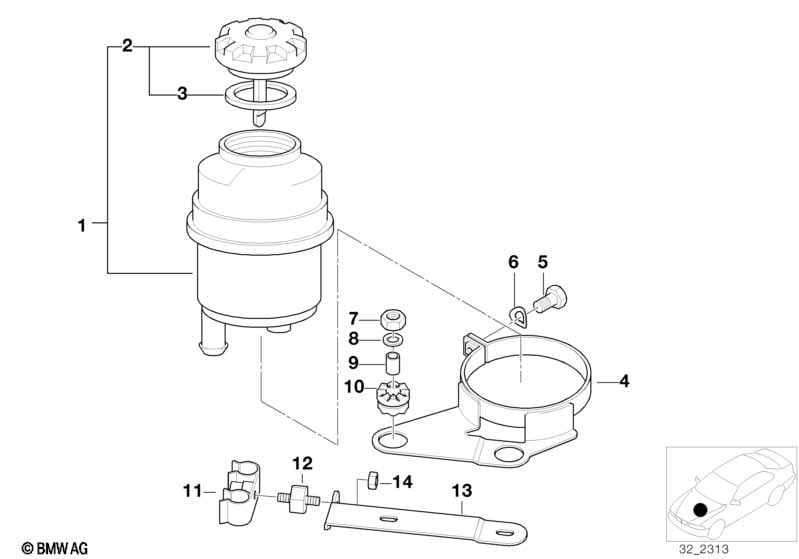

This Oljehus / Detaljen technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oljehus | CHF 11.S | 1 | 32416851217 | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | Haenvisningsskylt, oljehus-p. servostyrn | ATF | 1 | 71246798132 | Shop at ECS Tuning | |||||
| 02 | Lock | CHF 11.S | 1 | 32416851332 | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | Haenvisningsskylt, oljehus-p. servostyrn | ATF | 1 | 71246798132 | Shop at ECS Tuning | |||||
| 03 | Packning | 1 | 32411128333 | $2.38 | Shop at ECS Tuning | |||||
| 04 | Skaft oljehus | 1 | 32411093238 | $6.80 | Shop at ECS Tuning | |||||
| 05 | Sexkantskruv med bricka | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Fjäderbricka | B6 | 1 | 07119932072 | $0.09 | Avslutad | Shop at ECS Tuning | |||
| 07 | Sexkantmutter med plaata | M6-8-ZNNIV SI | 2 | 07119905949 | $0.24 | Shop at ECS Tuning | ||||
| 08 | Underlagsplaata | 6,4X25X1,5 | 2 | 07146977329 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Distanshylsa | ZNS3 | 2 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 10 | Gummilager | 2 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
Notering
- Avslutad = delen tillverkas inte längre.
