Drivaxel/hjullagring for BMW 7 Series E23 730 (1979)

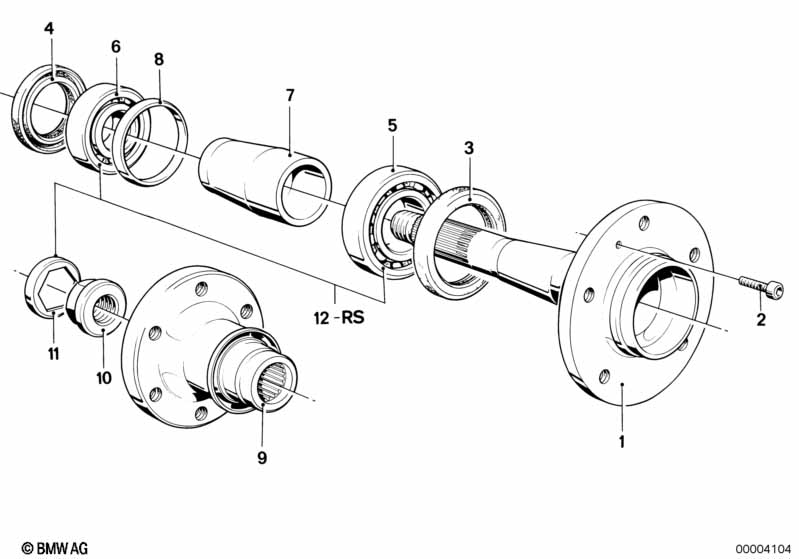

This Drivaxel/hjullagring technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 730. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drivaxel | 2 | 09/1981 | 33411123710 | $128.57 | Shop at ECS Tuning | ||||
| 02 | Inre sexkantbult | M8X12 | 2 | 09/1981 | 34111123072 | $1.32 | Shop at ECS Tuning | |||
| 03 | Axeltätning | 2 | 09/1981 | 33411100599 | $19.50 | Shop at ECS Tuning | ||||
| 04 | Axeltätning | 2 | 09/1981 | 33411085077 | $17.54 | Shop at ECS Tuning | ||||
| 05 | Lager | 40X80X18 | 2 | 09/1981 | 33411122130 | Avslutad | Shop at ECS Tuning | |||
| 06 | Lager | 30X62X16 | 2 | 09/1981 | 33411122131 | $28.44 | Shop at ECS Tuning | |||
| 07 | Distanshylsa | 2 | 09/1981 | 33411114978 | $16.38 | Avslutad | Shop at ECS Tuning | |||
| För fordon med Antiblockeringssystem (ABS) |
=Ja |
|||||||||
| 07 | Distanshylsa | 2 | 09/1981 | 33411116829 | $94.58 | Avslutad | Shop at ECS Tuning | |||
| 08 | Distansbricka | 55X61,8X4,800MM | 2 | 09/1981 | 33411100601 | $1.97 | Shop at ECS Tuning | |||
| 08 | Distansbricka | 55X61,8X4,900MM | 2 | 09/1981 | 33411100602 | $2.95 | Avslutad | Shop at ECS Tuning | ||
| 08 | Distansbricka | 55X61,8X5,000MM | 2 | 09/1981 | 33411100603 | $2.98 | Avslutad | Shop at ECS Tuning | ||
| 08 | Distansbricka | 55X61,8X5,100MM | 2 | 09/1981 | 33411100604 | $2.95 | Avslutad | Shop at ECS Tuning | ||
| 08 | Distansbricka | 55X61,8X5,200MM | 2 | 09/1981 | 33411100605 | $3.31 | Avslutad | Shop at ECS Tuning | ||
| 08 | Distansbricka | 55X61,8X4,850MM | 2 | 09/1981 | 33411105024 | $2.39 | Shop at ECS Tuning | |||
| 08 | Distansbricka | 55X61,8X4,950MM | 2 | 09/1981 | 33411105025 | $2.00 | Avslutad | Shop at ECS Tuning | ||
| 08 | Distansbricka | 55X61,8X5,050MM | 2 | 09/1981 | 33411105026 | Avslutad | Shop at ECS Tuning | |||
| 08 | Distansbricka | 55X61,8X5,150MM | 2 | 09/1981 | 33411105027 | $2.79 | Avslutad | Shop at ECS Tuning | ||
| 08 | Distansbricka | 55X61,8X5,250MM | 2 | 09/1981 | 33411105028 | $1.97 | Avslutad | Shop at ECS Tuning | ||
| 09 | Medbringarflaens | 2 | 09/1981 | 33411117159 | $58.45 | Shop at ECS Tuning | ||||
| 10 | Flänsmutter | M22X1,5 | 2 | 09/1981 | 31521211089 | $5.07 | Shop at ECS Tuning | |||
| 11 | Låsbleck | 2 | 09/1981 | 23211530104 | $7.60 | Shop at ECS Tuning | ||||
| 12 | Reparationssats hyullagring | 30X62/40X80 | 2 | 09/1981 | 33411107512 | $87.27 | Shop at ECS Tuning | |||
Notering
- Avslutad = delen tillverkas inte längre.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 730 Drivaxel/hjullagring?
- This technical diagram illustrates the Drivaxel/hjullagring within the Bakaxel group for the 7 Series E23 730 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Drivaxel (Part #33411123710).
- Which models use the hardware listed in this Drivaxel/hjullagring?
- The hardware and components featured in the Drivaxel/hjullagring are specific to the 7 Series E23 730 produced during 1979. These technical specifications ensure that parts like the Drivaxel (33411123710) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Drivaxel/hjullagring assembly?
- Each item in the Drivaxel/hjullagring corresponds to the numbered list below the illustration. For the 7 Series E23 730, you can identify the Drivaxel by locating its position on the schematic, which then links to the official BMW part number 33411123710 for the Bakaxel section.
