Bakaxelvaexel-laasinsats for BMW 1500-2000CS 1800 (1971)

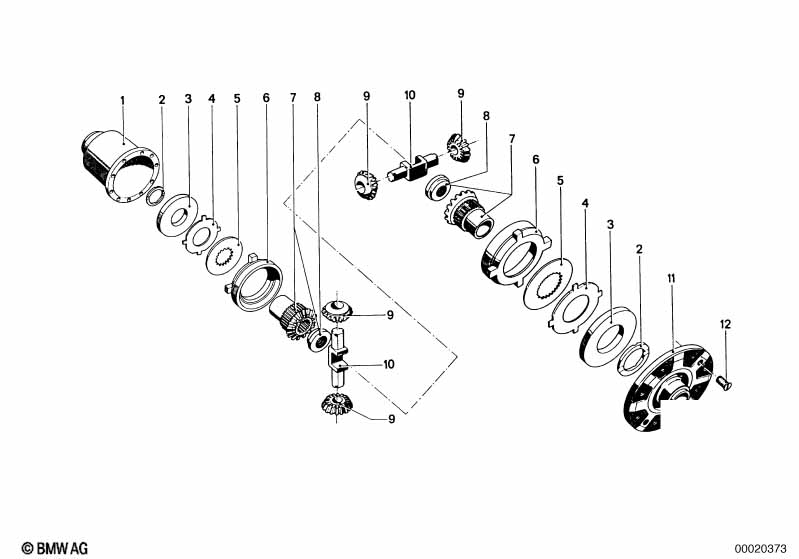

This Bakaxelvaexel-laasinsats technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Diff.hus | 1 | 33141201930 | Avslutad | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | AT-laasinsats | 1 | 33141202294 | Avslutad | Shop at ECS Tuning | |||||
| 02 | Tryckbricka | 2,20MM | X | 33141201931 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 02 | Tryckbricka | 2,15MM | X | 33141201932 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 02 | Tryckbricka | 2,05MM | X | 33141201934 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 02 | Tryckbricka | 2,00MM | X | 33141201935 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 02 | Tryckbricka | 1,95MM | X | 33141201936 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 02 | Tryckbricka | 1,90MM | X | 33141201937 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 02 | Tryckbricka | 1,85MM | X | 33141201938 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 02 | Tryckbricka | 1,80MM | X | 33141201939 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | AT-laasinsats | X | 33141202294 | Avslutad | Shop at ECS Tuning | |||||
| 03 | Ring | 2 | 33141201941 | Avslutad | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | AT-laasinsats | 2 | 33141202294 | Avslutad | Shop at ECS Tuning | |||||
| 04 | Lamell yttre | 2 | 33141201940 | Avslutad | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | AT-laasinsats | 2 | 33141202294 | Avslutad | Shop at ECS Tuning | |||||
| 05 | Lamell inre | 1,90MM | X | 33141201942 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 05 | Lamell inre | 2,00MM | X | 33141201943 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 05 | Lamell inre | 2,10MM | X | 33141201944 | $36.92 | Avslutad | Shop at ECS Tuning | |||
| endasti i kombination med | ||||||||||
| -- | AT-laasinsats | X | 33141202294 | Avslutad | Shop at ECS Tuning | |||||
| 06 | Tryckring | 2 | 33141201945 | Avslutad | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | AT-laasinsats | 2 | 33141202294 | Avslutad | Shop at ECS Tuning | |||||
| 07 | Bakaxeldrev | 2 | 33141201946 | Avslutad | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | AT-laasinsats | 2 | 33141202294 | Avslutad | Shop at ECS Tuning | |||||
| 08 | Gaengadring | 4 | 33141201947 | Avslutad | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | AT-laasinsats | 4 | 33141202294 | Avslutad | Shop at ECS Tuning | |||||
| 09 | Diff.drev | 2 | 33141201948 | Avslutad | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | AT-laasinsats | 2 | 33141202294 | Avslutad | Shop at ECS Tuning | |||||
| 10 | Differential axel | 1 | 33141201949 | Avslutad | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | AT-laasinsats | 1 | 33141202294 | Avslutad | Shop at ECS Tuning | |||||
| 11 | Huskaapa | 1 | 33141201950 | Avslutad | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | AT-laasinsats | 1 | 33141202294 | Avslutad | Shop at ECS Tuning | |||||
| 12 | Skruv med saenkhuvud | M6X16-8.8-ZNS3 | 2 | 07119904304 | $0.25 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | AT-laasinsats | 2 | 33141202294 | Avslutad | Shop at ECS Tuning | |||||
Notering
- Avslutad = delen tillverkas inte längre.
