Bakaxelvaexel med spaerr for BMW 2500-3.3Li 2500

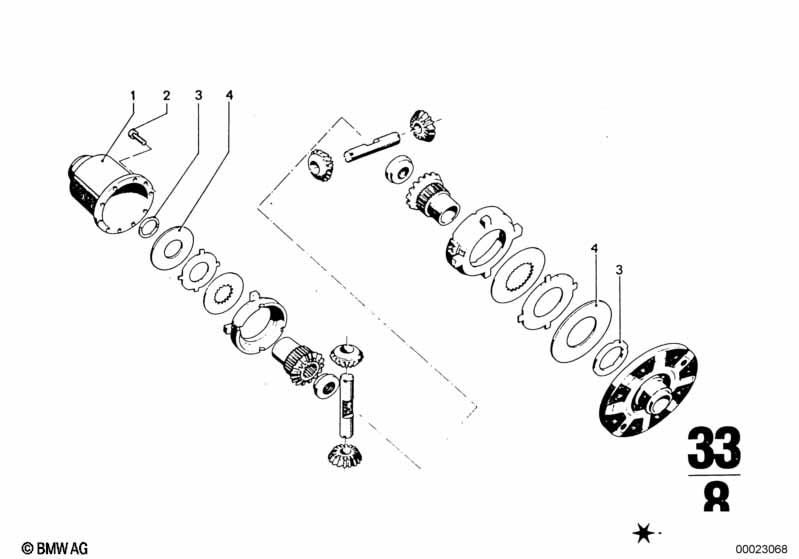

This Bakaxelvaexel med spaerr technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Differentialhus | 1 | 33141203802 | Avslutad | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | AT-laasinsats | 75 % | 1 | 33141203604 | Avslutad | Shop at ECS Tuning | ||||
| 02 | Skruv ctt | M6X10 | 2 | 33141205531 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | AT-laasinsats | 75 % | 2 | 33141203604 | Avslutad | Shop at ECS Tuning | ||||
| 03 | Tryckbricka | 2,20MM | 2 | 33141201931 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 03 | Tryckbricka | 2,15MM | 2 | 33141201932 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 03 | Tryckbricka | 2,10MM | 2 | 33141201933 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 03 | Tryckbricka | 2,05MM | 2 | 33141201934 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 03 | Tryckbricka | 2,00MM | 2 | 33141201935 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 03 | Tryckbricka | 1,95MM | 2 | 33141201936 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 03 | Tryckbricka | 1,90MM | 2 | 33141201937 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 03 | Tryckbricka | 1,85MM | 2 | 33141201938 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 03 | Tryckbricka | 1,80MM | 2 | 33141201939 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 03 | Tryckbricka | 2,25MM | 2 | 33141203791 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 03 | Tryckbricka | 2,30MM | 2 | 33141203792 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | AT-laasinsats | 75 % | 2 | 33141203604 | Avslutad | Shop at ECS Tuning | ||||
| 04 | Brickafjaeder | 2 | 33141204367 | Avslutad | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | AT-laasinsats | 75 % | 2 | 33141203604 | Avslutad | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Bakaxelvaexel med spaerr?
- This technical diagram illustrates the Bakaxelvaexel med spaerr within the Bakaxel group for the 2500-3.3Li 2500. It provides a detailed exploded view of the components, identifying key parts such as the Differentialhus (Part #33141203802).
- Which models use the hardware listed in this Bakaxelvaexel med spaerr?
- The hardware and components featured in the Bakaxelvaexel med spaerr are specific to the 2500-3.3Li 2500. These technical specifications ensure that parts like the Differentialhus (33141203802) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bakaxelvaexel med spaerr assembly?
- Each item in the Bakaxelvaexel med spaerr corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Differentialhus by locating its position on the schematic, which then links to the official BMW part number 33141203802 for the Bakaxel section.
