Utgående drivaxel for BMW 2500-3.3Li 3.0S

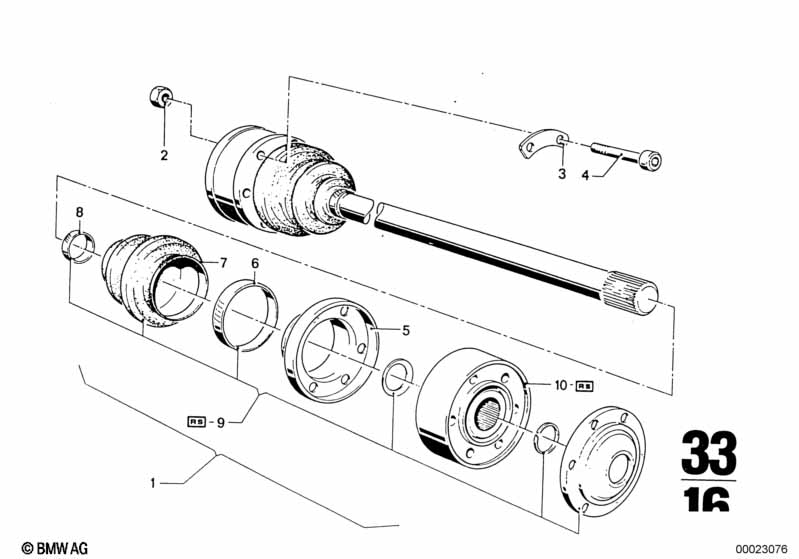

This Utgående drivaxel technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP REMAN utgående axel | 2 | 33211105428 | $425.54 | Avslutad | Shop at ECS Tuning | ||||
| 02 | Sexkantmutter | 24 | 26111204183 | $0.30 | Avslutad | Shop at ECS Tuning | ||||
| 03 | Underlagsplaat | D=10,5MM/ZNS3 | 12 | 33207572719 | $2.25 | Shop at ECS Tuning | ||||
| 04 | Skruv ctt med plaata | M10X70 | 24 | 08/1968 | 02/1977 | 11121342244 | $7.05 | Shop at ECS Tuning | ||
| 05 | Kåpa | 4 | 33211205839 | Avslutad | Shop at ECS Tuning | |||||
| 06 | Slangklaemma | 4 | 33211209496 | $5.58 | Avslutad | Shop at ECS Tuning | ||||
| 08 | Slangklaemma | 4 | 33211209496 | $5.58 | Avslutad | Shop at ECS Tuning | ||||
| 09 | Reparationssats dammskydd | 4 | 33219067912 | $57.68 | Avslutad | Shop at ECS Tuning | ||||
| 10 | Synkroniserad laenk | 4 | 33211205840 | Avslutad | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Utgående drivaxel?
- This technical diagram illustrates the Utgående drivaxel within the Bakaxel group for the 2500-3.3Li 3.0S. It provides a detailed exploded view of the components, identifying key parts such as the RP REMAN utgående axel (Part #33211105428).
- Which models use the hardware listed in this Utgående drivaxel?
- The hardware and components featured in the Utgående drivaxel are specific to the 2500-3.3Li 3.0S. These technical specifications ensure that parts like the RP REMAN utgående axel (33211105428) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Utgående drivaxel assembly?
- Each item in the Utgående drivaxel corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the RP REMAN utgående axel by locating its position on the schematic, which then links to the official BMW part number 33211105428 for the Bakaxel section.
