Bakaxelstaell for BMW 2500-3.3Li 2500

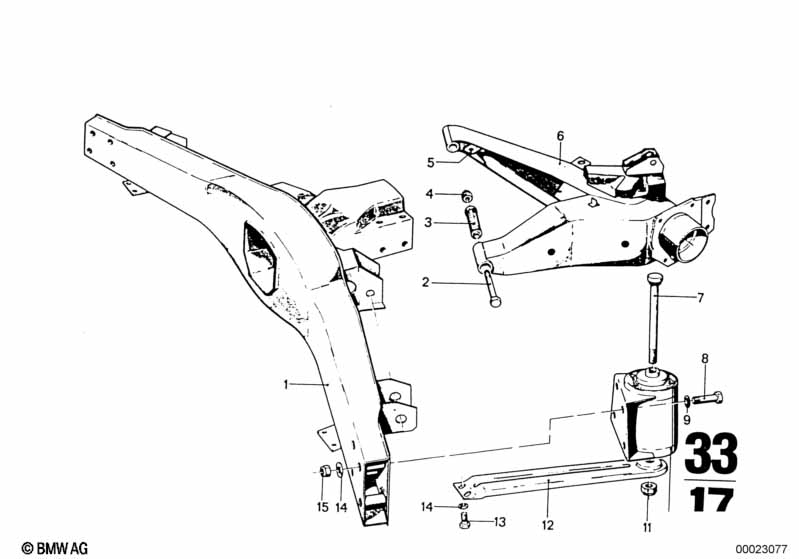

This Bakaxelstaell technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bakaxelstaell | 1 | 33311107116 | $410.89 | Avslutad | Shop at ECS Tuning | ||||
| 02 | Sexkantskruv | M12X1.5X90 | 4 | 07119914667 | $1.78 | Shop at ECS Tuning | ||||
| 03 | Sats motorfaeste | D=30MM | 4 | 33329061945 | $26.77 | Shop at ECS Tuning | ||||
| 04 | Sexkantmutter självlasning | M12X1,5-10-PHR | 4 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Bygel | 2 | 08/1968 | 02/1977 | 33553628130 | $12.45 | Shop at ECS Tuning | |||
| 06 | Bärarm vänster | 1 | 33321124857 | $581.62 | Avslutad | Shop at ECS Tuning | ||||
| 06 | Bärarm höger | 1 | 33321124858 | $581.62 | Shop at ECS Tuning | |||||
| 07 | Bult med splines | M14X1,5X30 10.9 | 2 | 33323628167 | $7.58 | Shop at ECS Tuning | ||||
| 08 | Sexkantskruv | M8X50 | 8 | 07119912517 | $0.82 | Shop at ECS Tuning | ||||
| 09 | Underlagsplaata | 8,4 | 8 | 33311108204 | $0.18 | Shop at ECS Tuning | ||||
| 10 | Gummilager | 2 | 08/1968 | 09/1973 | 33333728100 | $74.67 | Shop at ECS Tuning | |||
| 10 | Motorfaeste vaenster | 1 | 09/1973 | 02/1977 | 33311108755 | $103.39 | Shop at ECS Tuning | |||
| 10 | Motorfaeste hoeger | 1 | 09/1973 | 02/1977 | 33311108756 | $103.39 | Shop at ECS Tuning | |||
| 11 | Sexkantmutter självlasning | M14X1,5 | 2 | 07129922745 | $1.04 | Shop at ECS Tuning | ||||
| 12 | Skjutstag | 2 | 33333628172 | $32.53 | Shop at ECS Tuning | |||||
| 13 | Sexkantskruv | M8X18-8.8-ZNS3 | 4 | 07119904146 | $0.65 | Shop at ECS Tuning | ||||
| 14 | Underlagsplaata | A8,4 | 8 | 33311108205 | $0.16 | Shop at ECS Tuning | ||||
| 15 | Sexkantmutter självlasning | M8 | 8 | 07129922716 | $0.36 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
