Drivaxel/hjullagring for BMW 2500-3.3Li 2500

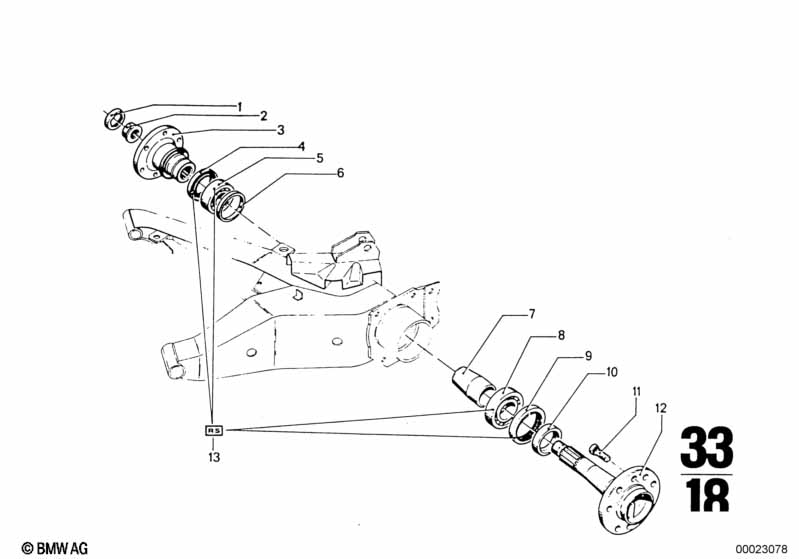

This Drivaxel/hjullagring technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Låsbleck | 2 | 23211530104 | $7.60 | Shop at ECS Tuning | |||||
| 02 | Flänsmutter | M22X1,5 | 2 | 31521211089 | $5.07 | Shop at ECS Tuning | ||||
| 03 | Medbringarflaens | 2 | 33411110721 | $52.17 | Avslutad | Shop at ECS Tuning | ||||
| 04 | Axeltätning | 2 | 33411085077 | $17.54 | Shop at ECS Tuning | |||||
| 05 | Lager | 30X62X16 | 2 | 33411122131 | $28.44 | Shop at ECS Tuning | ||||
| alternativt | ||||||||||
| 06 | Distansbricka | 55X61,8X4,800MM | 2 | 33411100601 | $1.97 | Shop at ECS Tuning | ||||
| 06 | Distansbricka | 55X61,8X4,900MM | 2 | 33411100602 | $2.95 | Avslutad | Shop at ECS Tuning | |||
| 06 | Distansbricka | 55X61,8X5,000MM | 2 | 33411100603 | $2.98 | Avslutad | Shop at ECS Tuning | |||
| 06 | Distansbricka | 55X61,8X5,100MM | 2 | 33411100604 | $2.95 | Avslutad | Shop at ECS Tuning | |||
| 06 | Distansbricka | 55X61,8X5,200MM | 2 | 33411100605 | $3.31 | Avslutad | Shop at ECS Tuning | |||
| 06 | Distansbricka | 55X61,8X4,850MM | 2 | 33411105024 | $2.39 | Shop at ECS Tuning | ||||
| 06 | Distansbricka | 55X61,8X4,950MM | 2 | 33411105025 | $2.00 | Avslutad | Shop at ECS Tuning | |||
| 06 | Distansbricka | 55X61,8X5,050MM | 2 | 33411105026 | Avslutad | Shop at ECS Tuning | ||||
| 06 | Distansbricka | 55X61,8X5,150MM | 2 | 33411105027 | $2.79 | Avslutad | Shop at ECS Tuning | |||
| 06 | Distansbricka | 55X61,8X5,250MM | 2 | 33411105028 | $1.97 | Avslutad | Shop at ECS Tuning | |||
| 07 | Distanshylsa | 2 | 33411114978 | $16.38 | Avslutad | Shop at ECS Tuning | ||||
| 08 | Lager | 40X80X18 | 2 | 33411122130 | Avslutad | Shop at ECS Tuning | ||||
| 09 | Axeltätning | 2 | 33411100599 | $19.50 | Shop at ECS Tuning | |||||
| 11 | Bult med splines | M12X1,5X43 | 10 | 08/1968 | 07/1976 | 33413604178 | $3.29 | Shop at ECS Tuning | ||
| 11 | Bult med splines | M12X1,5X48,5 | 10 | 05/1971 | 02/1977 | 33411106765 | $6.89 | Shop at ECS Tuning | ||
| 12 | Drivaxel | 2 | 08/1968 | 07/1976 | 33411110354 | $459.79 | Avslutad | Shop at ECS Tuning | ||
| 12 | Drivaxel | 2 | 05/1971 | 02/1977 | 33411110355 | Avslutad | Shop at ECS Tuning | |||
| 13 | Reparationssats hyullagring | 30X62/40X80 | 2 | 33411107512 | $87.27 | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
