Fjädring, stabilisator for BMW 2500-3.3Li 2500

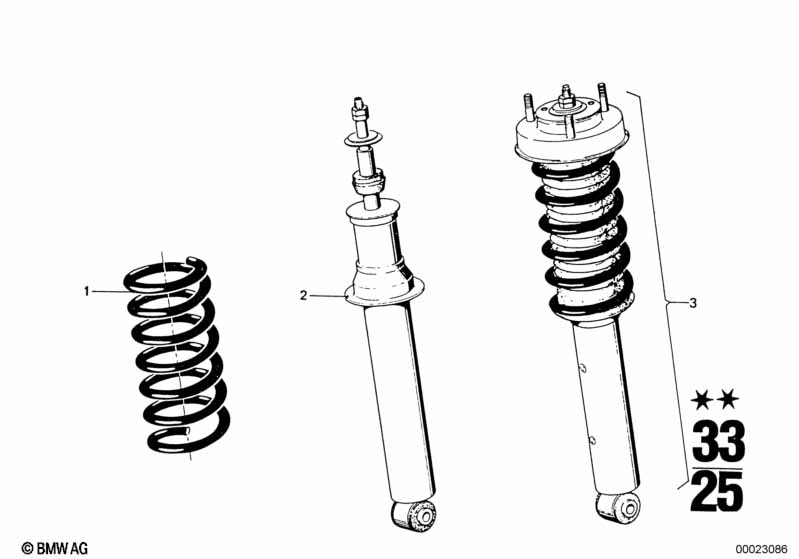

This Fjädring, stabilisator technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spiralfjaeder | WEISS | 2 | 08/1968 | 02/1977 | 31331112147 | $175.21 | Avslutad | Shop at ECS Tuning | |
| endasti i kombination med | ||||||||||
| 01 | Spiralfjaeder | 2 | 08/1968 | 02/1977 | 33531112110 | $188.60 | Shop at ECS Tuning | |||
| endasti i kombination med | ||||||||||
| -- | Krängningshämmare | X | 08/1968 | 02/1977 | 71601104533 | Avslutad | Shop at ECS Tuning | |||
| 02 | Fjäderben bak | 2 | 33521105433 | Avslutad | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | Krängningshämmare | X | 71601104533 | Avslutad | Shop at ECS Tuning | |||||
| 03 | Fjäderben bak | 2 | 33521101142 | Avslutad | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | Krängningshämmare | X | 71601104533 | Avslutad | Shop at ECS Tuning | |||||
Notering
- Avslutad = delen tillverkas inte längre.
