Nivaaregler./lednings/monteringsdetalj. for BMW 6 Series G32 GT 620dX (2020)

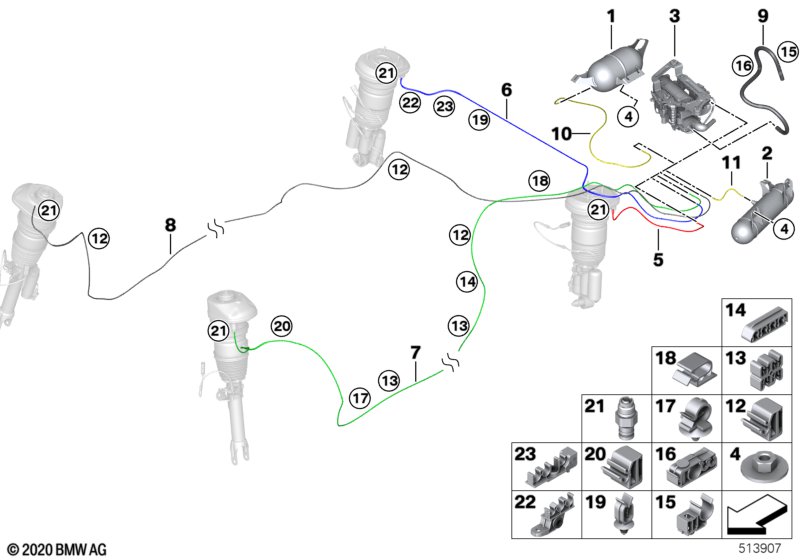

This Nivaaregler./lednings/monteringsdetalj. technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 620dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| För fordon med 2-axlad luftfjädring eller Executive Drive |
S2VRA=Ja S2VTA=Ja |
|||||||||
| 01 | Tryckreservoar | 2LITER | 1 | 37206874764 | Shop at ECS Tuning | |||||
| 02 | Tryckreservoar | 2LITER | 1 | 37206874769 | Shop at ECS Tuning | |||||
| 03 | Luftfoersoerjning | 1 | 37206886721 | Shop at ECS Tuning | ||||||
| För fordon med 2-axlad luftfjädring eller Executive Drive |
S2VRA=Ja S2VTA=Ja |
|||||||||
| 03 | Luftfoersoerjning | 1 | 37206886722 | Shop at ECS Tuning | ||||||
| 04 | Kombi-mutter | 3 | 07147305178 | Shop at ECS Tuning | ||||||
| Skruvförband luftförsörjningssystem | ||||||||||
| För fordon med 2-axlad luftfjädring eller Executive Drive |
S2VRA=Ja S2VTA=Ja |
|||||||||
| 04 | Kombi-mutter | 7 | 07147305178 | Shop at ECS Tuning | ||||||
| Skruvförband luftbehållare | ||||||||||
| 05 | Luftledning bak vänster | ROT | 1 | 37206868405 | Shop at ECS Tuning | |||||
| 06 | Luftledning bak höger | BLAU | 1 | 37206868406 | Shop at ECS Tuning | |||||
| För fordon med 2-axlad luftfjädring eller Executive Drive |
S2VRA=Ja S2VTA=Ja |
|||||||||
| 07 | Luftledning fram vänster | GRÜN | 1 | 37206868407 | Shop at ECS Tuning | |||||
| 08 | Luftledning fram höger | SCHWARZ | 1 | 37206868408 | Shop at ECS Tuning | |||||
| 09 | Avluftningsledning | 1 | 37206866343 | Shop at ECS Tuning | ||||||
| För fordon med 2-axlad luftfjädring eller Executive Drive |
S2VRA=Ja S2VTA=Ja |
|||||||||
| 10 | Luftledning | GELB | 1 | 37206861938 | Shop at ECS Tuning | |||||
| 11 | Luftledning | GELB | 1 | 37206861939 | Shop at ECS Tuning | |||||
| 12 | Ledningsklammer enkel | 13 | 37206875836 | Shop at ECS Tuning | ||||||
| För fordon med 2-axlad luftfjädring eller Executive Drive |
S2VRA=Ja S2VTA=Ja |
|||||||||
| 13 | Ledningsclip | 8 | 37226776050 | $0.63 | Shop at ECS Tuning | |||||
| 14 | Distanshållare 4 x | 1 | 34326777692 | $0.38 | Shop at ECS Tuning | |||||
| 15 | Ledningsklammer enkel | 1 | 37206870526 | Shop at ECS Tuning | ||||||
| 16 | Hållare bromsledningar trefaldig | 1 | 34326857528 | Shop at ECS Tuning | ||||||
| För fordon med 2-axlad luftfjädring eller Executive Drive |
S2VRA=Ja S2VTA=Ja |
|||||||||
| 17 | Fästklammer | 1 | 61138368029 | $0.43 | Shop at ECS Tuning | |||||
| 18 | Kabelhållare | 1 | 07147127025 | $1.28 | Shop at ECS Tuning | |||||
| 19 | Kabelhållare | SCHWARZ | 5 | 61131389898 | $0.55 | Shop at ECS Tuning | ||||
| 20 | Ledningsklammer enkel | 3 | 37206875836 | Shop at ECS Tuning | ||||||
| 21 | Skruvansluitning | D=4MM | 1 | 37221092403 | $3.00 | Shop at ECS Tuning | ||||
| 22 | Ledningsclip | 1 | 37106877351 | Shop at ECS Tuning | ||||||
| 23 | Kabelclips trefaldigt | 1 | 37106866299 | Shop at ECS Tuning | ||||||
