Bromsledningar fram ABS/ASC+T for BMW 3 Series E36 328i (1994)

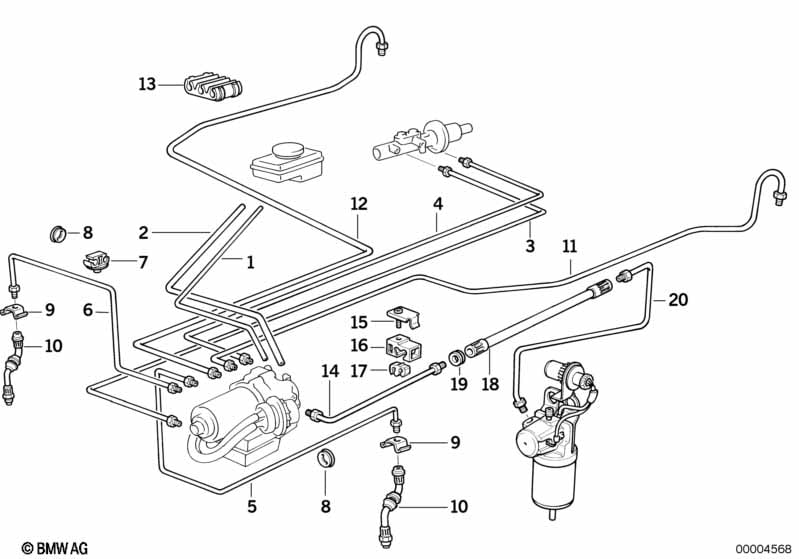

This Bromsledningar fram ABS/ASC+T technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Roerledning med gummihoelje | 1 | 09/1996 | 34301162741 | $25.60 | Shop at ECS Tuning | ||||
| 04 | Roerledning med gummihoelje | 1 | 09/1996 | 34321161662 | $25.60 | Shop at ECS Tuning | ||||
| 05 | Roerledning | M10/M10-963MM | 1 | 09/1996 | 34326755601 | $10.03 | Shop at ECS Tuning | |||
| 06 | Roerledning | M10/M12-2109MM | 1 | 09/1996 | 34326755514 | $10.52 | Shop at ECS Tuning | |||
| 07 | Hållare bromsledningar | 2 | 34301161568 | $1.48 | Shop at ECS Tuning | |||||
| 08 | Gummihylsa | 2 | 34331161163 | $1.53 | Shop at ECS Tuning | |||||
| 09 | Faestfjaeder | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 10 | Bromsslang fram | 2 | 34321159717 | $39.55 | Shop at ECS Tuning | |||||
| 11 | Roerledning | M10/M10-3120MM | 1 | 09/1996 | 34326755686 | $17.08 | Shop at ECS Tuning | |||
| 12 | Roerledning | M10/M12-3864MM | 1 | 09/1996 | 34326755526 | $30.00 | Shop at ECS Tuning | |||
| 13 | Hållare bromsledningar | 1 | 34321107992 | $1.02 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 328i Bromsledningar fram ABS/ASC+T?
- This technical diagram illustrates the Bromsledningar fram ABS/ASC+T within the Bromsar group for the 3 Series E36 328i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Roerledning med gummihoelje (Part #34301162741).
- Which models use the hardware listed in this Bromsledningar fram ABS/ASC+T?
- The hardware and components featured in the Bromsledningar fram ABS/ASC+T are specific to the 3 Series E36 328i produced during 1994. These technical specifications ensure that parts like the Roerledning med gummihoelje (34301162741) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bromsledningar fram ABS/ASC+T assembly?
- Each item in the Bromsledningar fram ABS/ASC+T corresponds to the numbered list below the illustration. For the 3 Series E36 328i, you can identify the Roerledning med gummihoelje by locating its position on the schematic, which then links to the official BMW part number 34301162741 for the Bromsar section.
